TRANSCEND CompactFlash Card CF180I, 256MB, SLC mode WD-15, Wide Temp.

Typ karty:Compact Flash I; Kapacita uložiště:0.256 GB.... více
Běžná cena: 725  (-13%)
519.01 Kč bez DPH
Skladem 4 ks
628 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 985180
Kód dod.: TS256MCF180I
EAN: 760557858829
Záruka: 3 Rok(ů)
Výrobce: Transcend
Popis a parametry

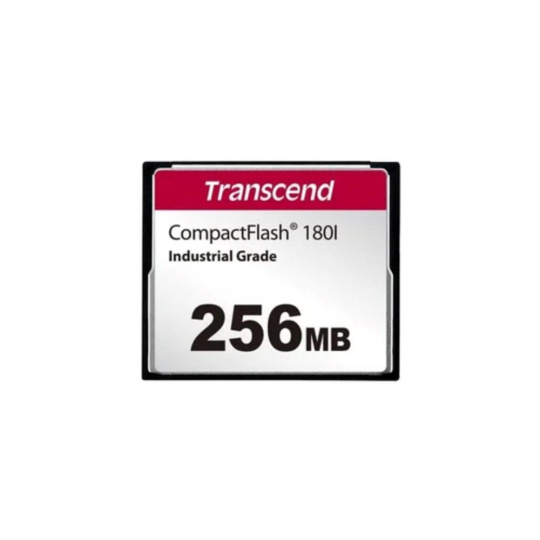

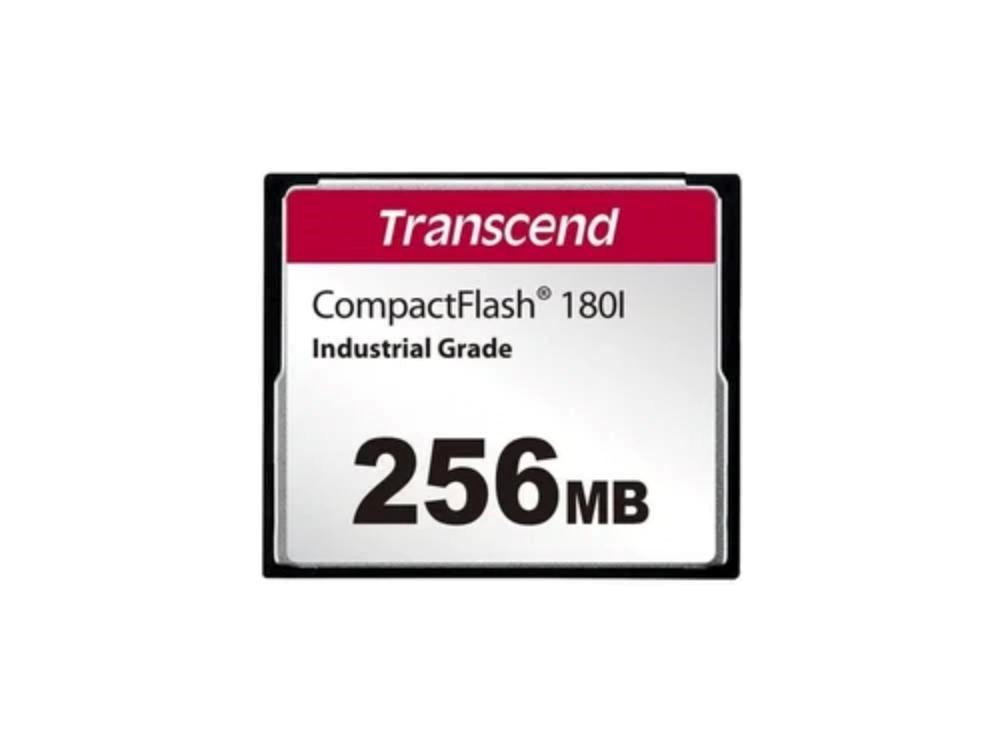

TRANSCEND CompactFlash Card CF180I, 256MB, SLC mode WD-15, Wide Temp.

CF180 & CF180I

Transcend's SLC Mode technology is a cost-effective solution that offers performance close to that of SLC NAND flash at a more affordable price. Boasting a high-speed data transfer rate, Transcend's SLC Mode CF180 CompactFlash cards are perfect for embedded systems, medical instruments, road surveillance systems, and other industrial applications having high performance and capacity demands. Thanks to their use of Static Data Refresh technology, CF180 CF cards feature error correction capability, maintain data integrity, and have an extended lifespan.

  • Based on Ultra DMA Mode 5
  • True IDE Mode supported: UDMA0-5 (default), MDMA0-4, PIO0-6
  • True IDE Mode: Fixed Disk (Standard)
  • Operation modes supported: PC Card Memory mode, PC Card IO mode, and True IDE mode
  • Built-in ECC (Error Correction Code) functionality
  • Static Data Refresh
  • Erase Count Monitoring
  • Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
  • Wear-Leveling
  • Security Command

TECHNICAL SPECIFICATIONS

Dimensions 42.8 mm x 36.4 mm x 3.3 mm (1.69" x 1.43" x 0.13")
Pin Count 50 pin
Form Factor Compact flash card
Storage
Flash Type MLC NAND flash (SLC mode)
Capacity 128 MB
Operating Environment
Operating Voltage 3.3V±5%
5V±10%
Operating Temperature Extended Temp.-25°C (-13°F) ~ 85°C (185°F) Wide Temp.-40°C (-40°F) ~ 85°C (185°F)
Storage Temperature -40°C (-40°F) ~ 85°C (185°F)
Humidity 0% ~ 95%
Shock 1500 G, 0.5 ms, 3 axis
Vibration (Operating) 20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)
Power
Power Consumption (Max.) 0.6 watt(s)
Performance
Read Speed (Max.) up to 85 MB/s
Write Speed (Max.) up to 70 MB/s
Mean Time Between Failures (MTBF) 3,000,000 hour(s)
Terabytes Written (TBW) up to 210 TBW
Note Speed may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.
Warranty
Certificate CE/FCC/UKCA
Warranty Three-year Limited Warranty

.
ParametryPorovnání
Typ karty
Compact Flash I
Kapacita uložiště
0.256 GB
