TP-Link ER605 OMADA VPN router (2xGbELAN, 1xGbEWAN, 2xGbELAN/WAN, 1xUSB2.0)
Popis a parametry
TP-Link ER605 OMADA VPN router (2xGbELAN, 1xGbEWAN, 2xGbELAN/WAN, 1xUSB2.0)

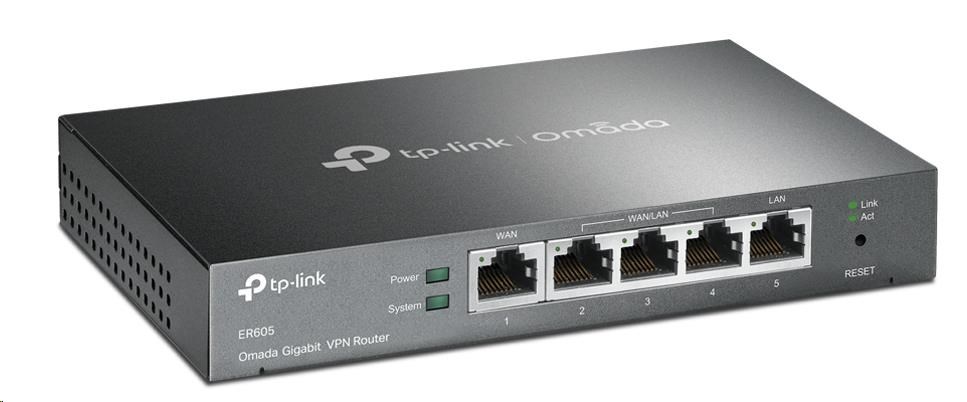

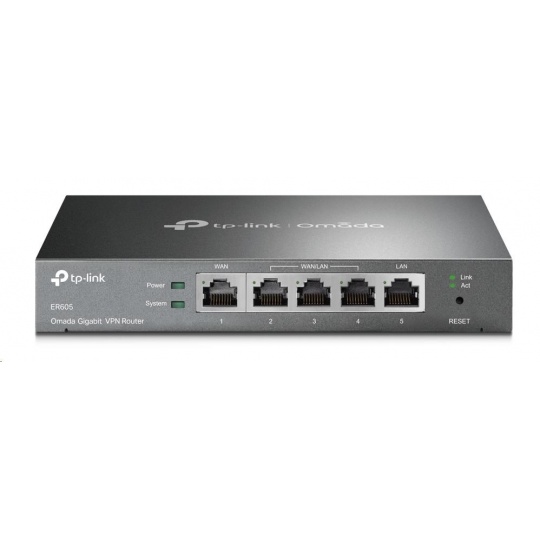

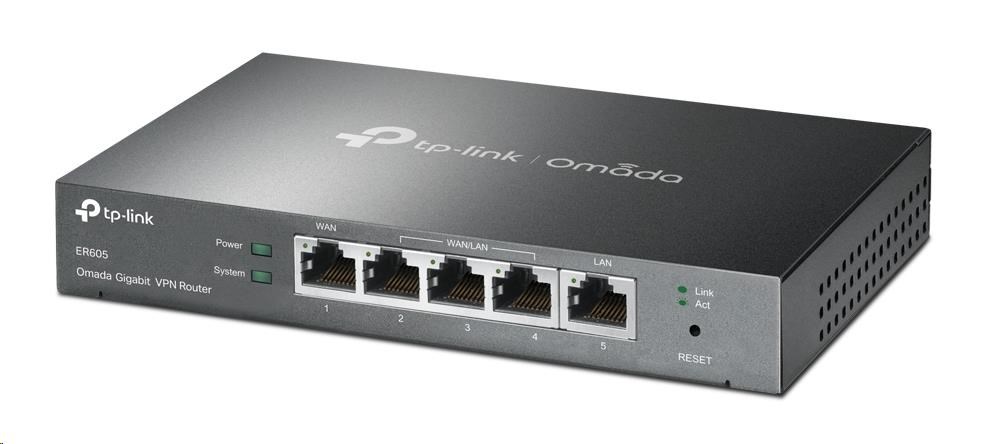

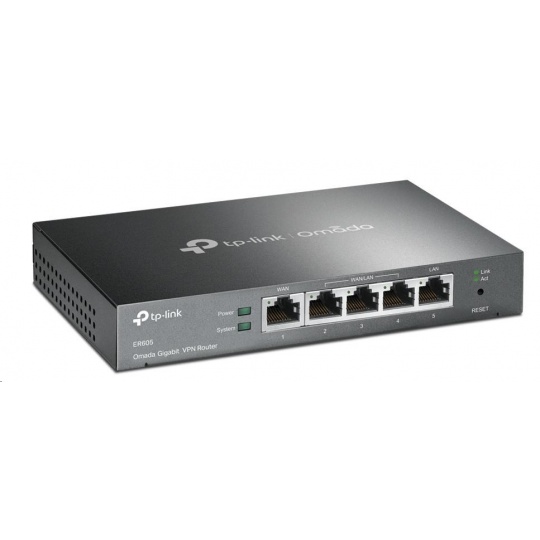

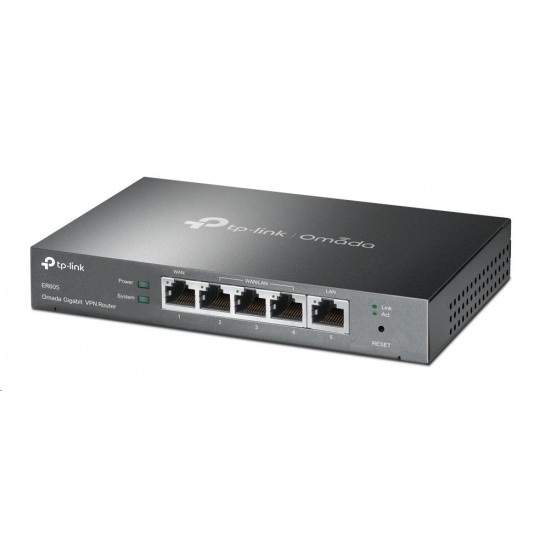

TP-Link ER605
Gigabitový VPN router Omada
- Integrováno do platformy Omada SDN: Funkce ZTP (Zero-Touch Provisioning),** centralizovaná cloudová správa a inteligentní monitorování.

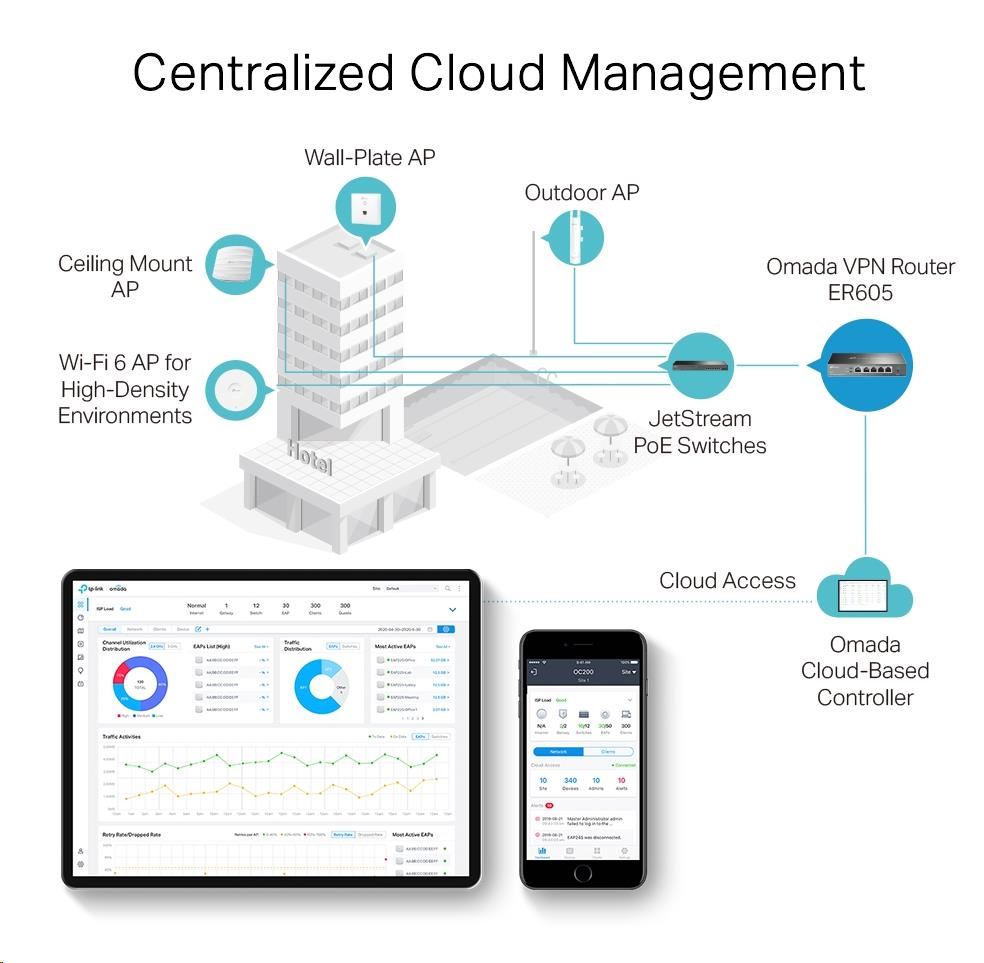

- Centralizovaná správa: Cloudový přístup a aplikace Omada pro maximální pohodlí a snadnou správu.
- Pět gigabitových portů: Vysokorychlostní kabelová konektivita.

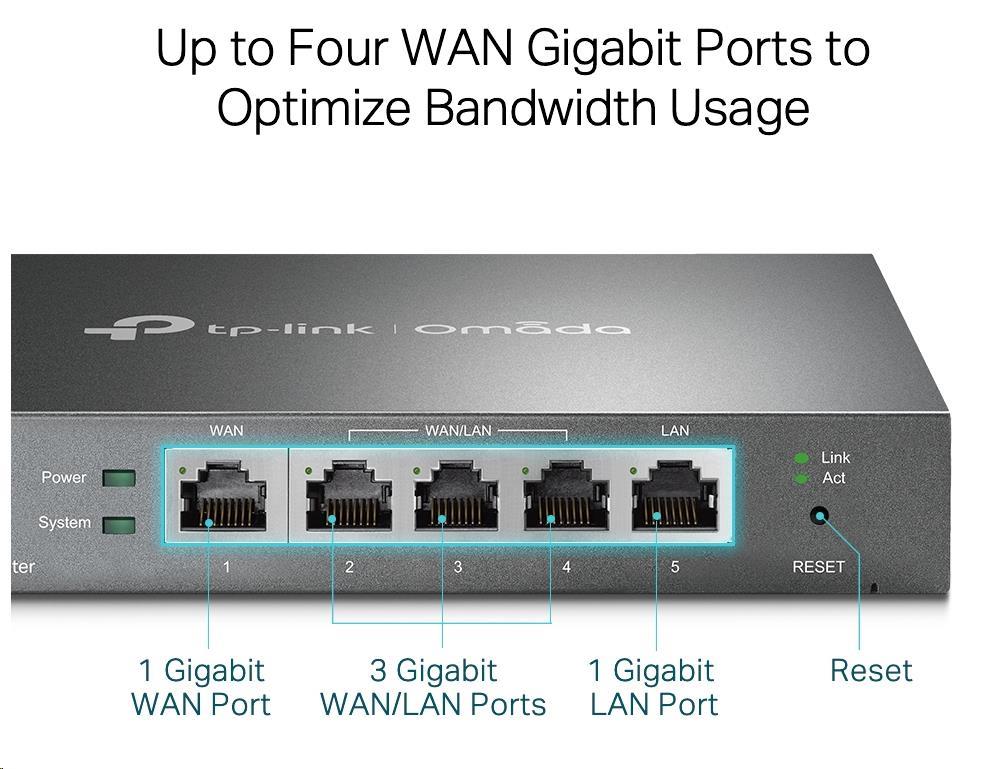

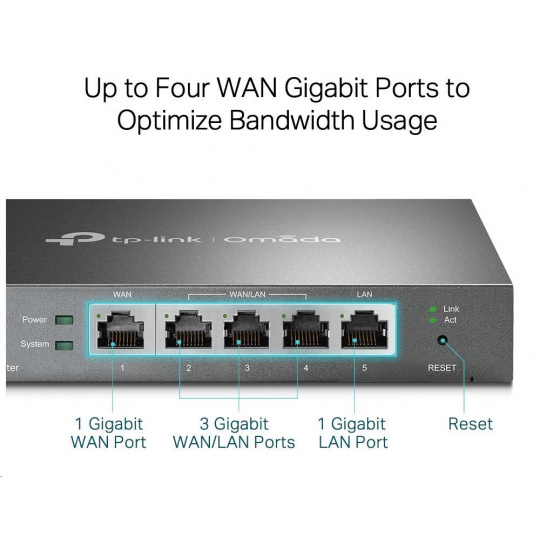

- Až 4 porty WAN: 1 gigabitový port WAN a 3 gigabitové porty WAN/LAN s funkcí vyrovnávání zatížení zvyšují míru využití vícelinkového širokopásmového připojení.

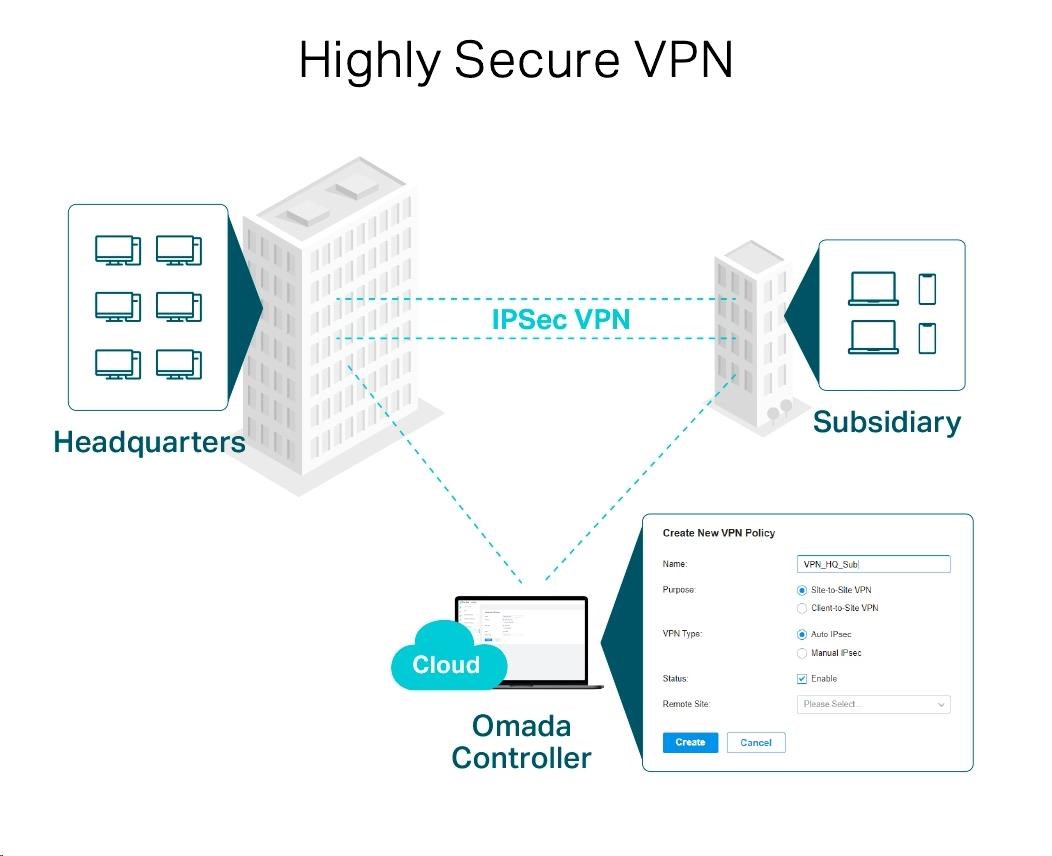

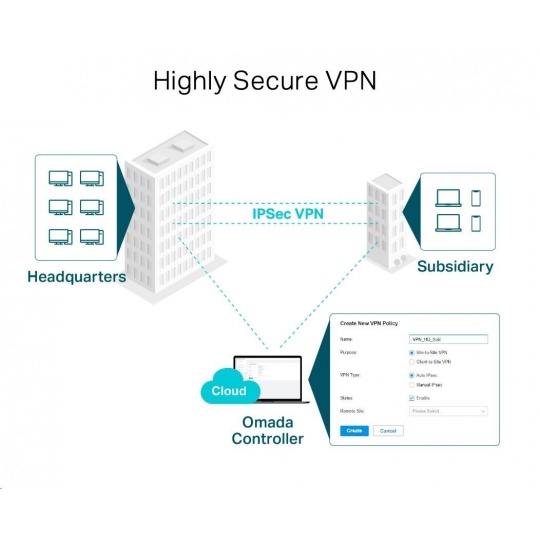

- VPN s vysokým zabezpečením: Podporuje připojení až 20× LAN-LAN IPsec, 16× OpenVPN,* 16× L2TP a 16× PPTP VPN.

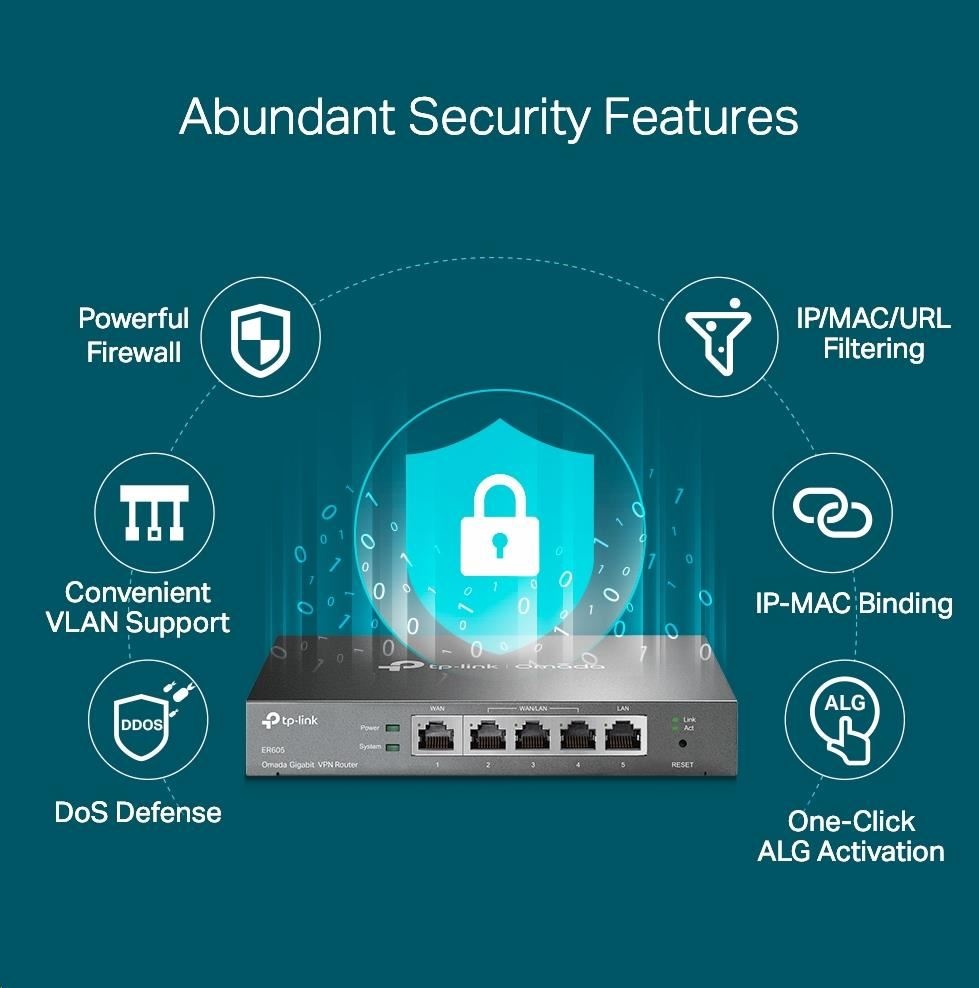

- Mnoho funkcí zabezpečení: Pokročilé zásady firewallu, ochrana proti útokům DoS, filtrování adres IP/MAC/URL a další bezpečnostní funkce na ochranu vaší sítě a dat.
| HARDWARE FEATURES | |
| Standards and Protocols | • IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
| Interface | • 1 Fixed Gigabit WAN Port • 2 Fixed Gigabit LAN Ports • 2 Changeable Gigabit WAN/LAN Ports • 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup) |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100ohm STP (Max 100m) • 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100ohm STP (Max 100m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Button | Reset Button |
| Power Supply | External 12V/1A DC Adapter |
| Flash | 128 MB NAND |
| DRAM | 256 MB DDR |
| LED | PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB |
| Dimensions (WxDxH) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm) |
| Max Power Consumption | 7.94 W |
| PERFORMANCE | |
| Concurrent Session | 150 |
| New Sessions /Second | 2,6 |
| NAT (Static IP) | • Upload: 945.77 Mbps • Download: 945.56 Mbps • Bi-Directional: 1808.29 Mbps |
| NAT(DHCP) | • Upload: 945.93 Mbps • Download: 945.43 Mbps • Bi-Directional: 1808.11 Mbps |
| NAT(PPPoE) | • Upload: 940.44Mbps • Download: 940.52 Mbps • Bi-Directional: 1804.27 Mbps |
| NAT (L2TP) | • Upload: 845.64 Mbps • Download: 802.65 Mbps • Bi-Directional: 931.96 Mbps |
| NAT (PPTP) | • Upload: 771.66 Mbps • Download: 874.81 Mbps • Bi-Directional: 999.54 Mbps |
| 64 Byte Packet Forwarding Rate | • Upload/Download: 1,402,238 pps • Bi-Directional: 1,681,548 pps |
| IPsec VPN Throughput | • ESP-MD5-AES256: 171.26 Mbps • ESP-SHA1-AES256: 224.86 Mbps • ESP-SHA2-AES256: 248.04 Mbps |
| OpenVPN | • 21.70 Mbps |
| L2TP VPN Throughput | • Unencrypted: 864.65 Mbps • Encrypted: 47.11 Mbps |
| PPTP VPN Throughput | • Unencrypted: 703.20 Mbps • Encrypted: 76.65 Mbps |
| BASIC FUNCTIONS | |
| WAN Connection Type | • Static/Dynamic IP • PPPoE • PPTP • L2TP • Mobile Broadband: 4G/3G modem for backup via USB port‡ |
| MAC Clone | Modify WAN/LAN MAC Address† |
| DHCP | • DHCP Server/Client • DHCP Address Reservation • Multi-net DHCP* • Multi-IP Interfaces* |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| ADVANCED FUNCTIONS | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing • Policy Routing |
| Bandwidth Control | IP-based Bandwidth Control |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing§, Failover) • Online Detection |
| NAT | • One-to-One NAT§ • Multi-Net NAT • Virtual Server • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| Security | • SPI Firewall • VPN Passthrough • FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defence, Ping of Death • Local Management |
| Session Limit | IP-based Session Limit |
| VPN | |
| IPsec VPN | • 20 IPsec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2 • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • 10 PPTP VPN Clients** • 16 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • 10 L2TP VPN Clients** • 16 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server* • 10 OpenVPN Clients* • 16 OpenVPN Tunnels* |
| SECURITY | |
| Filtering | • WEB Group Filtering§ • URL Filtering • Web Security§ |
| ARP Inspection | • Sending GARP Packets§ • ARP Scanning§ • IP-MAC Binding§ |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| Access Control | Source/Destination IP Based Access Control |
| AUTHENTICATION | |
| Web Authentication | • No Authentication • Simple Password* • Hotspot(Local User / Voucher* / SMS* / Radius*) • External Radius Sever • External Portal Sever* • Facebook* |
| MANAGEMENT | |
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize • Syslog Support |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • Gigabti VPN Router ER605 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0°C–40°C (32°F–104°F); • Storage Temperature: -40°C–70°C (-40°F–158°F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
ParametryPorovnání
USB port
Ano
Gigabit ethernet
Ano
Další vlastnosti
VLAN
Další vlastnosti
Podpora IPv6
Další vlastnosti
FTP server
Další vlastnosti
Management
Další vlastnosti
Firewall
Funkce
Router
Funkce
VPN
