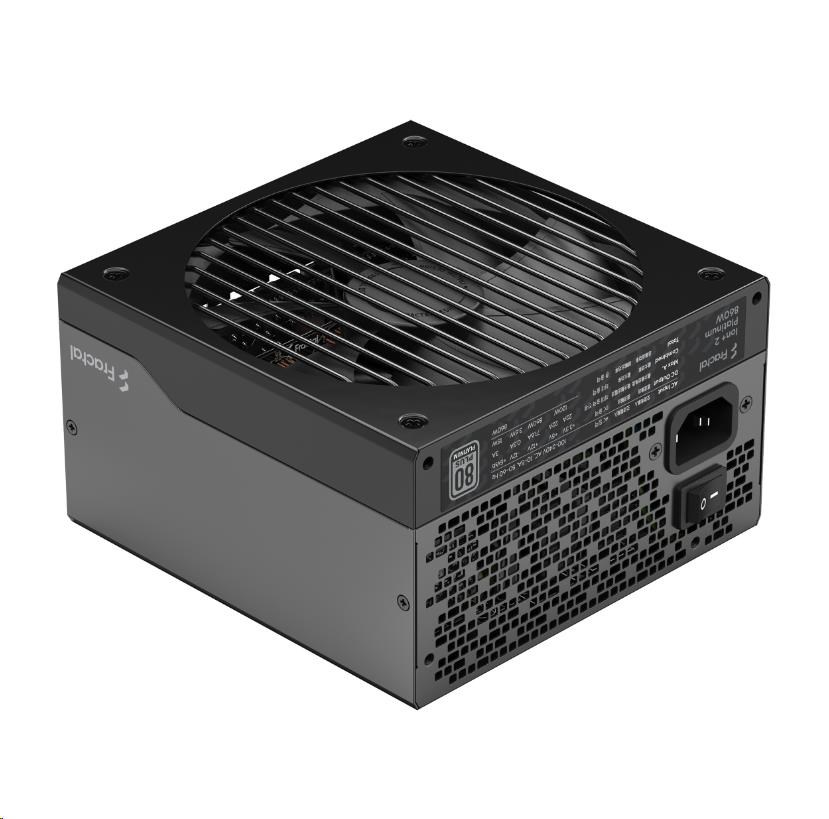

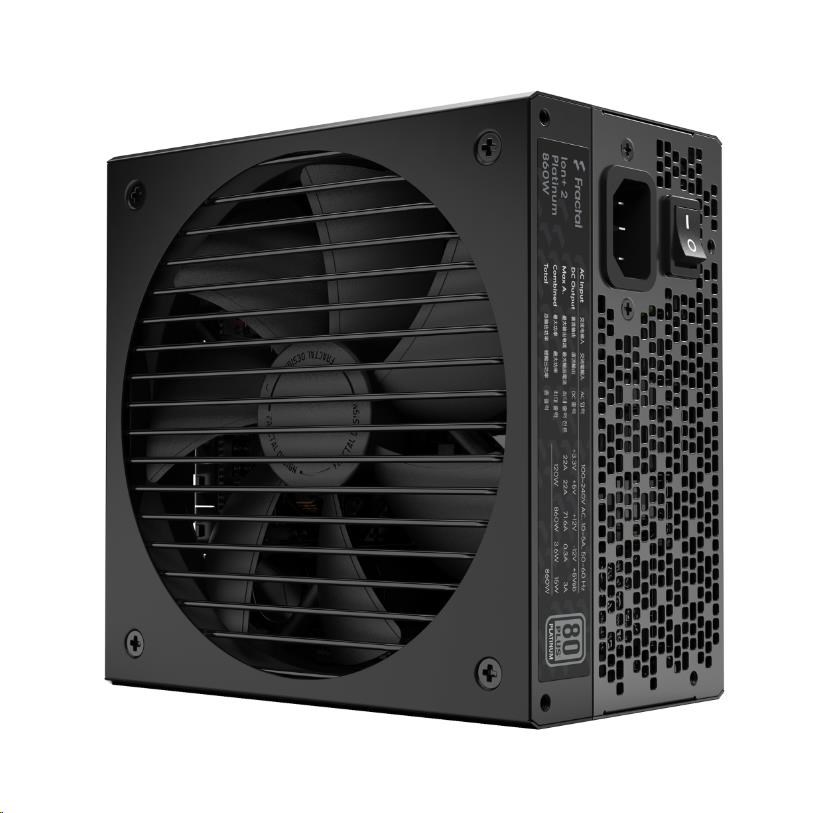

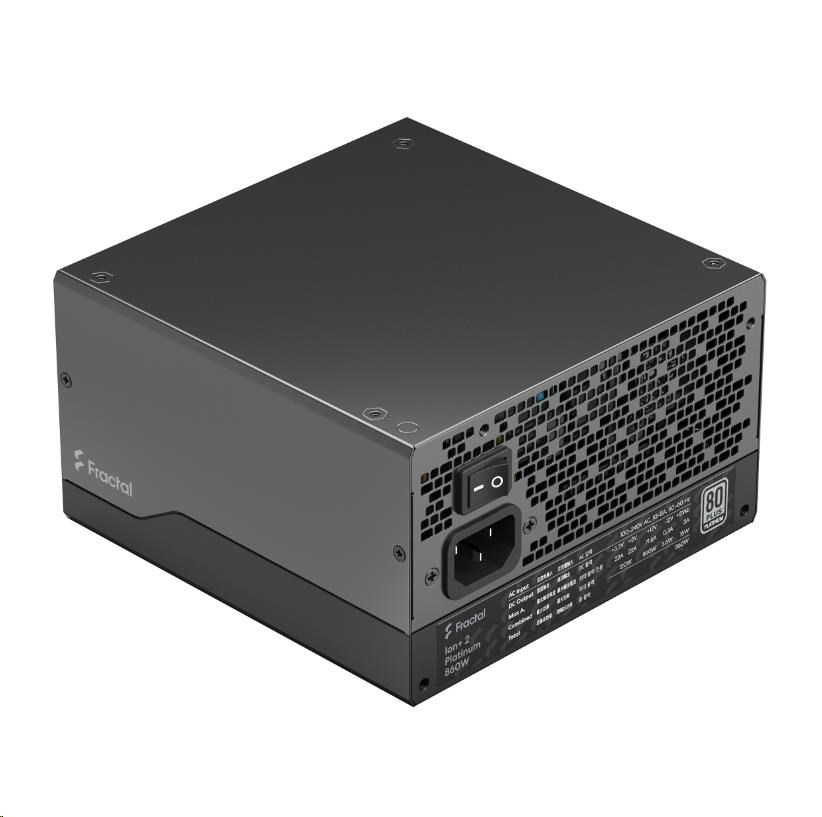

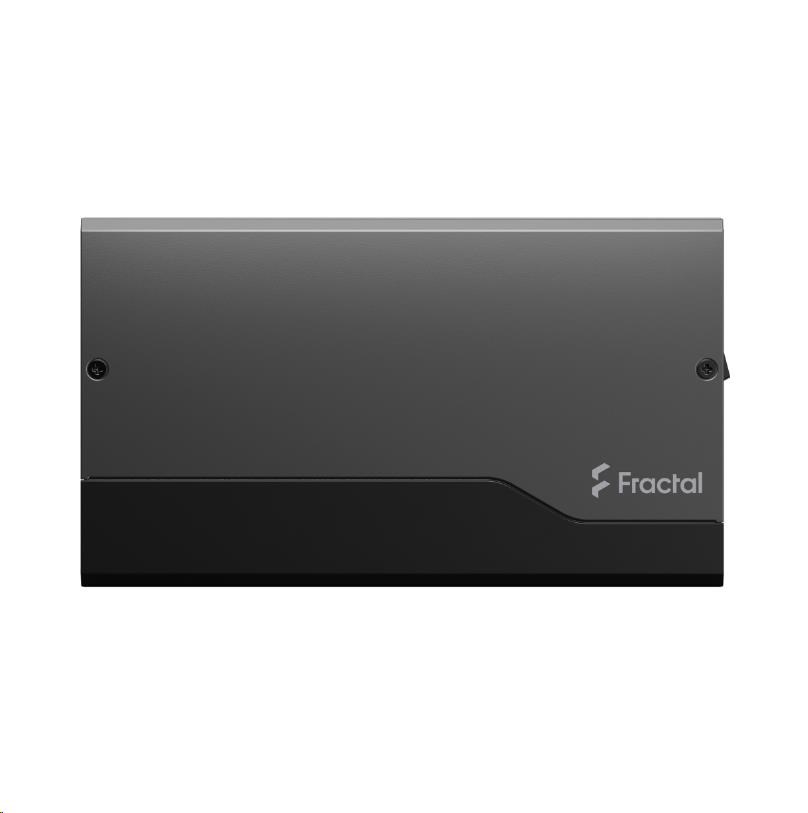

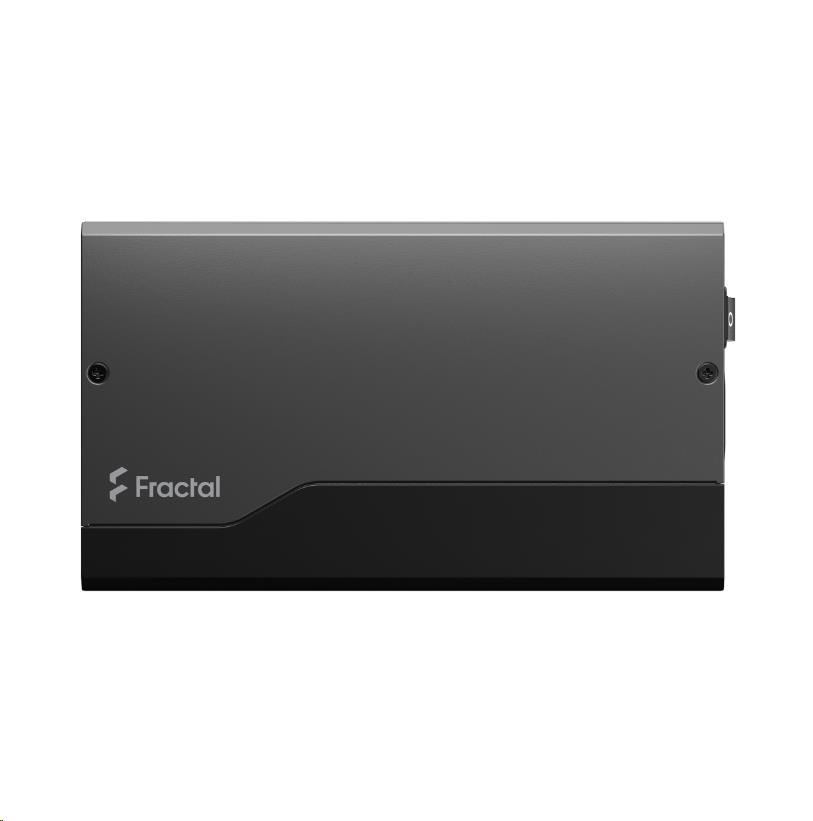

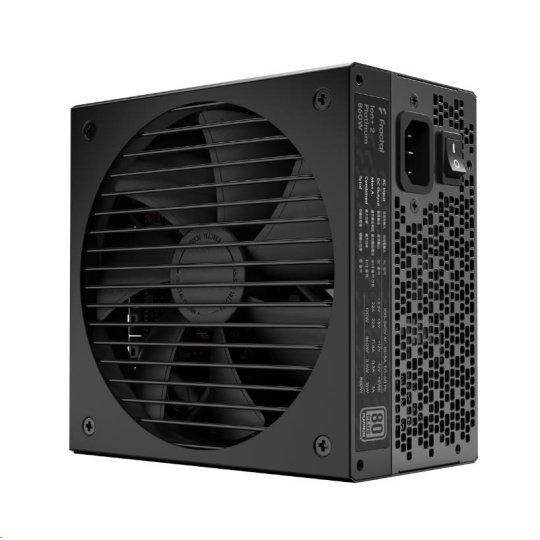

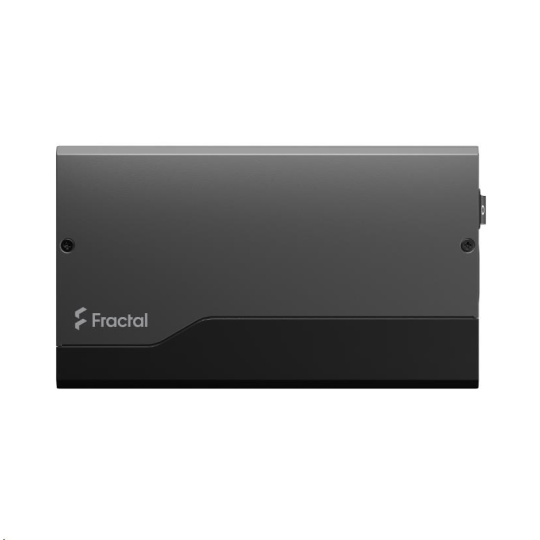

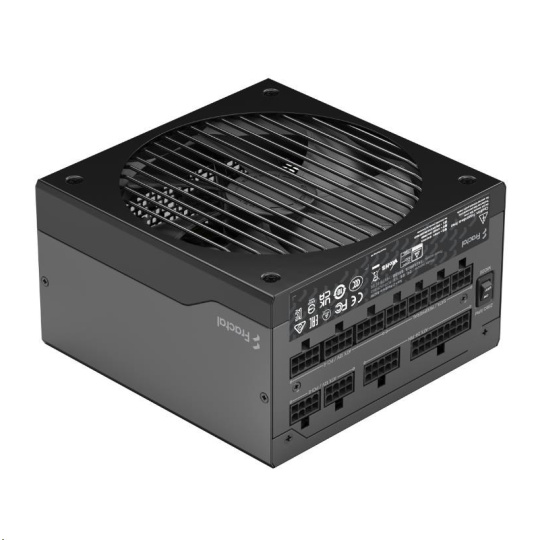

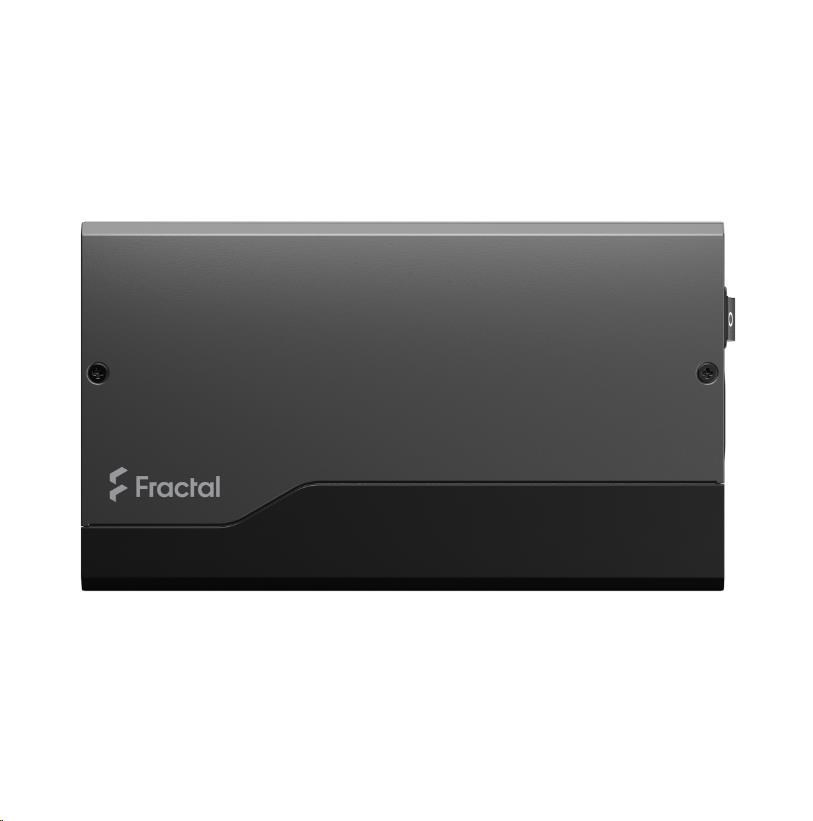

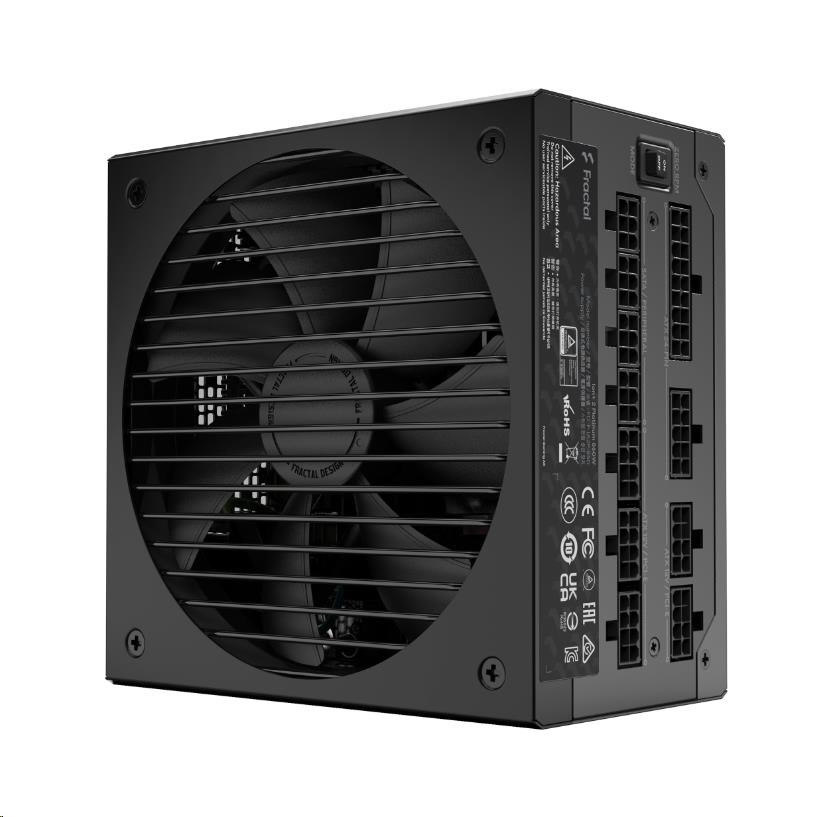

FRACTAL DESIGN zdroj Ion+ 2 860W PLATINUM, modular, 80+ Platinum

Výkon zdroje (ve W):860; Efektivita zdroje:80 Plus Platinum; Konektory:PCIe 8-pin, SATA 15-pin; Konektory pro základní desku:ATX 24-pin; Modulární kabeláž.... více
Běžná cena: 5 675  (-16%)
3 957.85 Kč bez DPH
Na dotaz
4 789 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 1208166
Kód dod.: FD-P-IA2P-860
Záruka: 10 Rok(ů)
Výrobce: Fractal Design
Popis a parametry

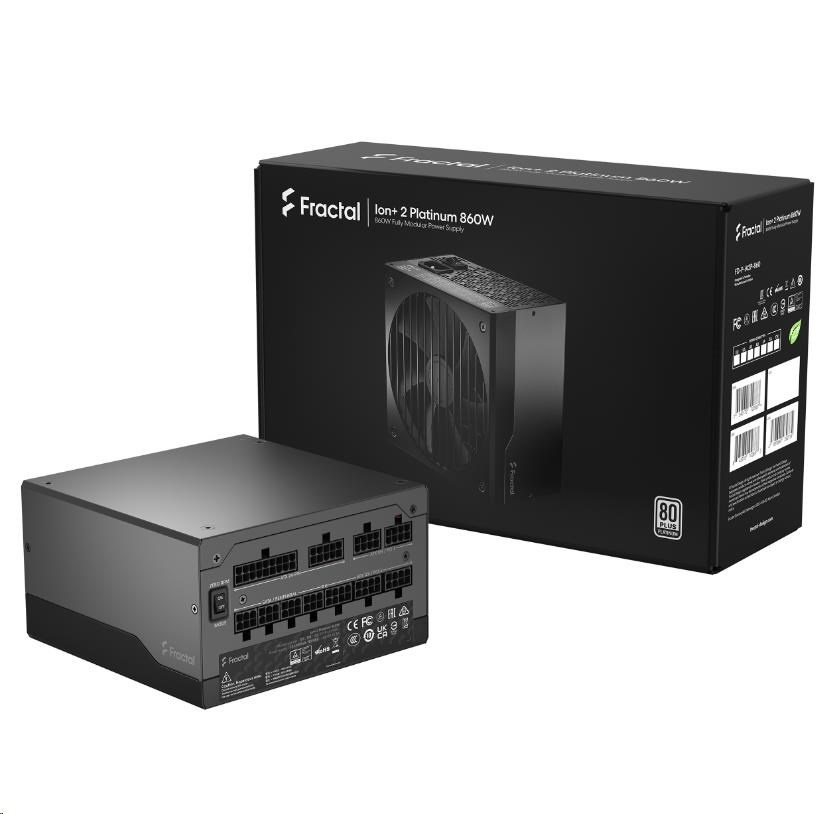

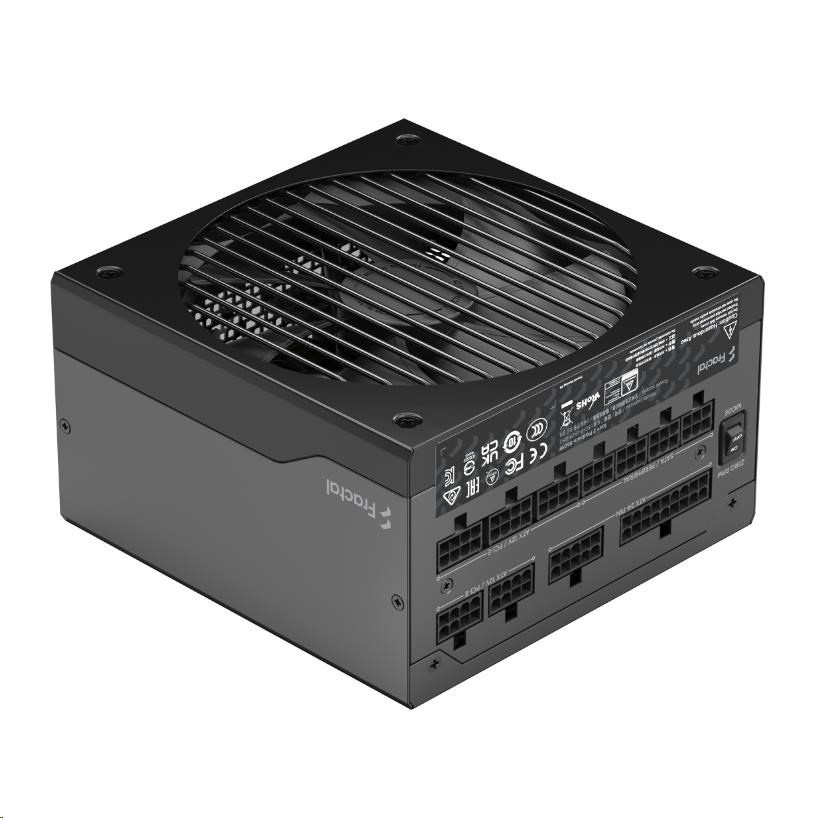

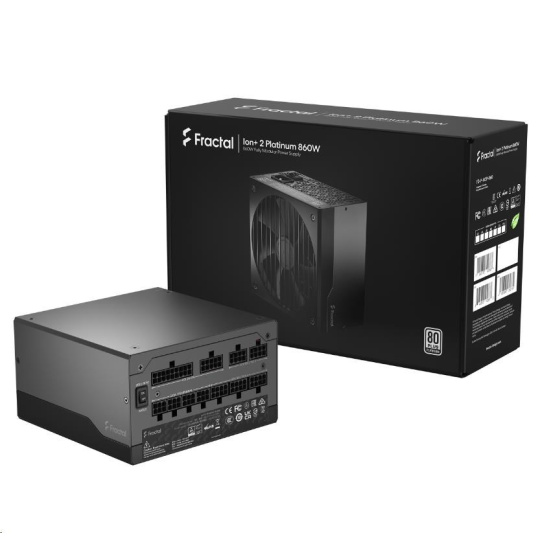

FRACTAL DESIGN zdroj Ion+ 2 860W PLATINUM, modular, 80+ Platinum

Ion+ 2 Platinum 860W

The Ion+ 2 Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality.

  • 80PLUS® Platinum efficiency for optimized electricity use and reduced heat generation
  • Great electrical output quality with tight voltage regulation and low ripple and noise

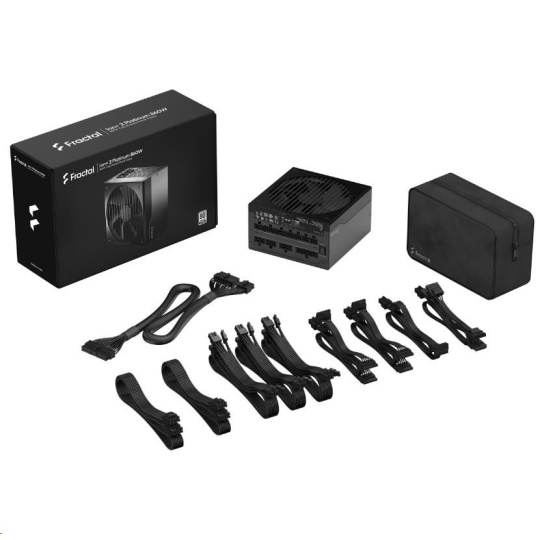

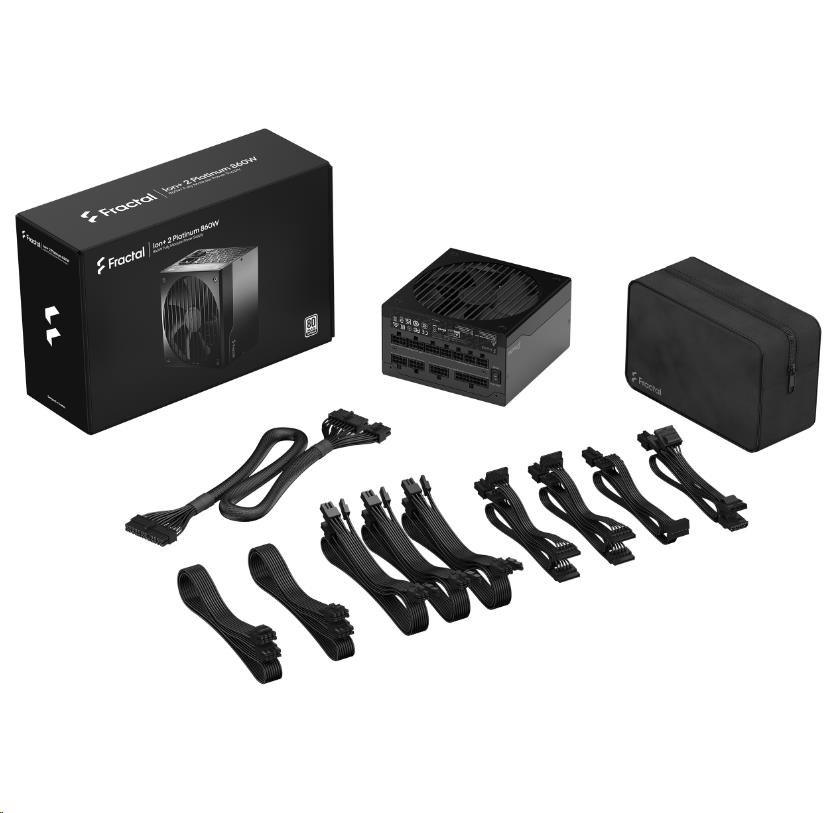

  • Fully modular design for reduced clutter and maximum ease of installation and with Fractal Design UltraFlex™ (extra bendable soft cables) for better cable management

TECHNICAL SPECIFICATIONS

80PLUS® certification Platinum
Modular cables Fully Modular

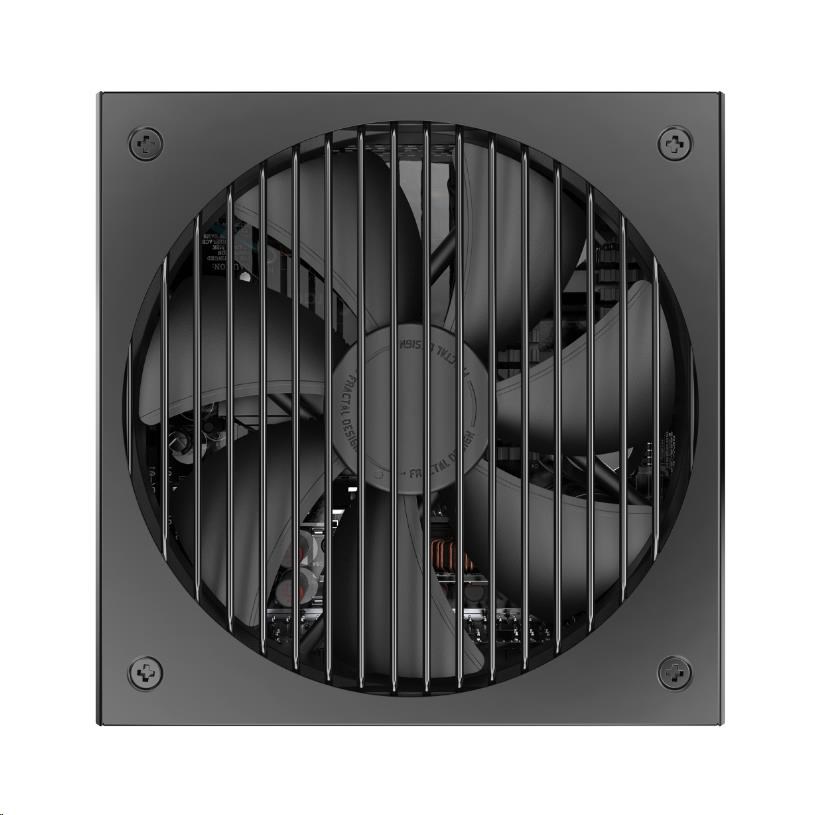

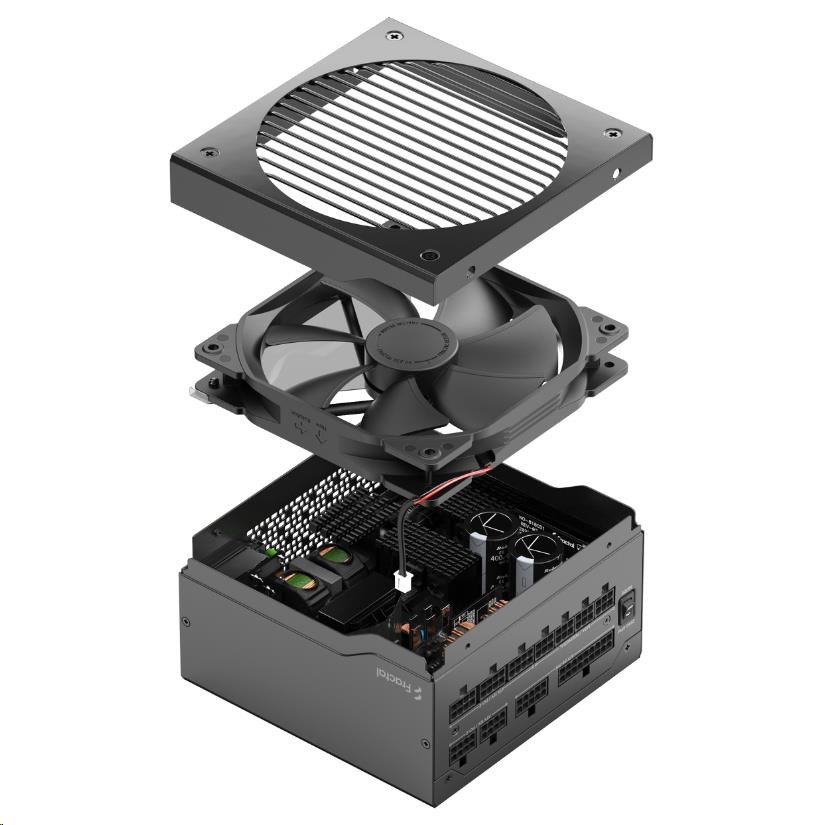

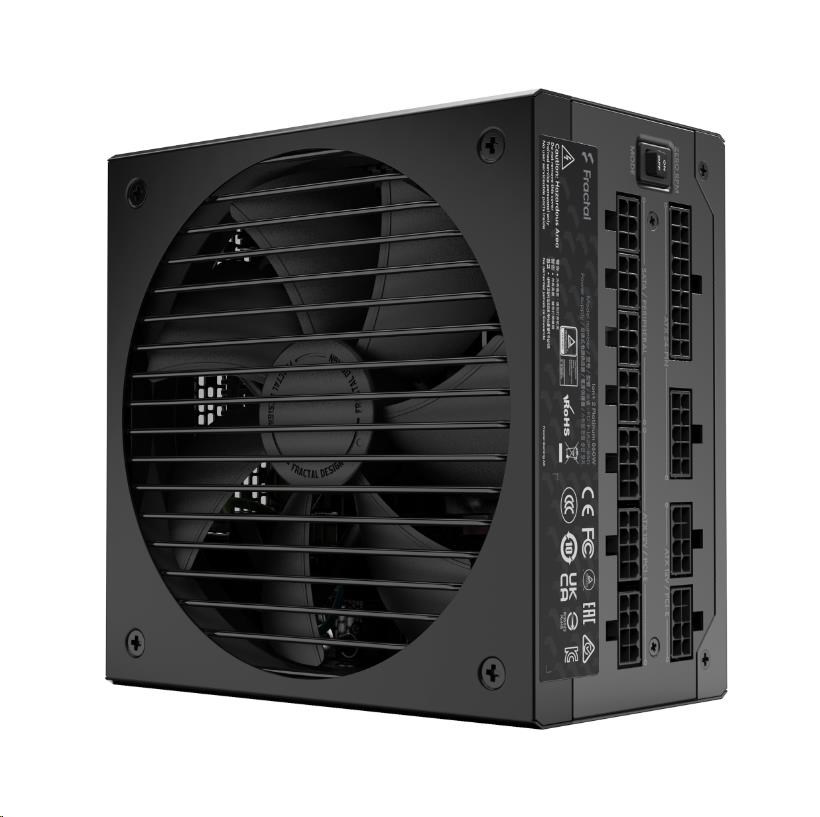

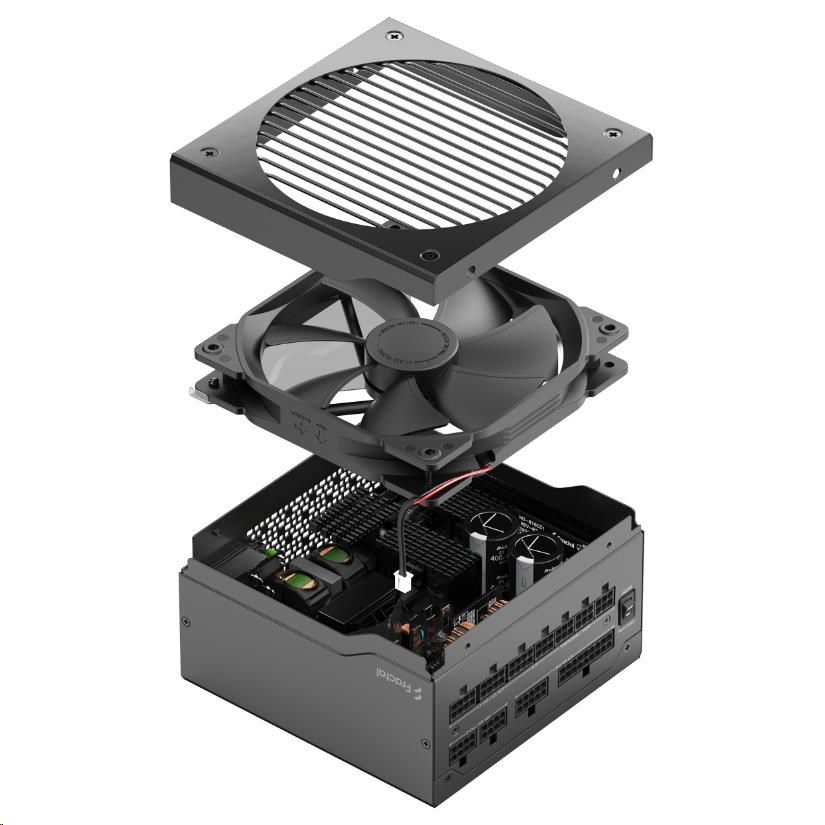

Fan type 140 mm FDB bearing Fractal Design Dynamic series fan
Maximum operating temperature (full load) 50°C
Semi-passive operation Yes, user selectable (Zero RPM)

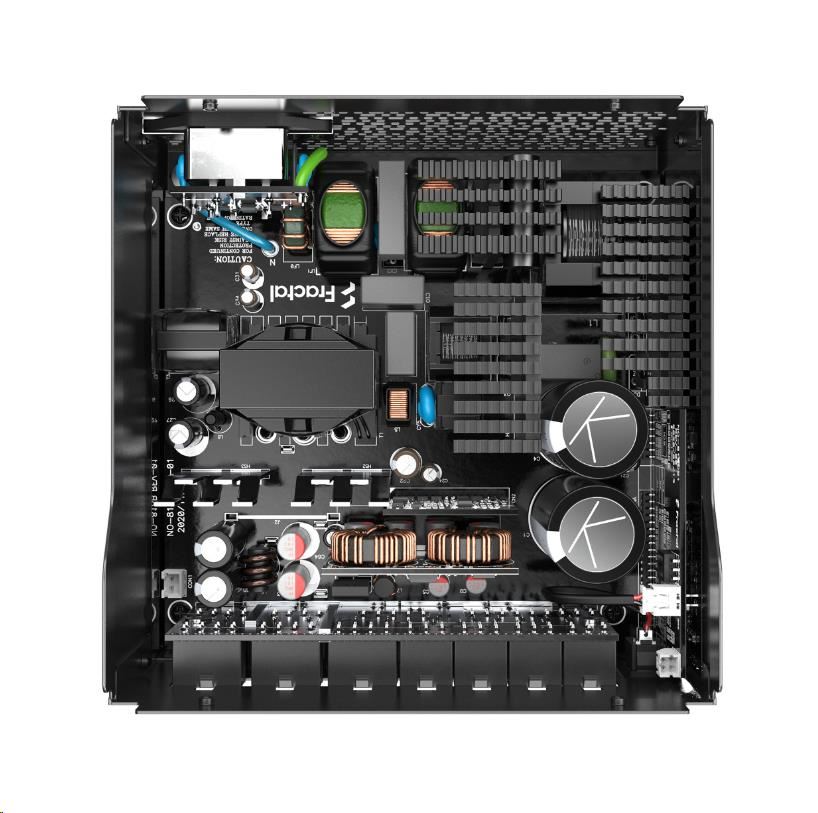

Capacitors Japanese
Life expectancy 100,000 hours
Cable type Modular 24-pin cable: Black UltraFlex™ wires in braided sleeve Other modular cables: Flat black UltraFlex™ wires
Input voltage 100-240V C
Input frequency 50-60 Hz
Input current 10A/5A
Protection features Over voltage protection, Under voltage protection, Overpower protection, Short circuit protection, Over current protection, Over temperature protection
PSU specification compliance ATX12V 2.52; EPS12V 2.92
Sleep state compliance C6/C7
Approvals & certifications CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC
Warranty 10 years

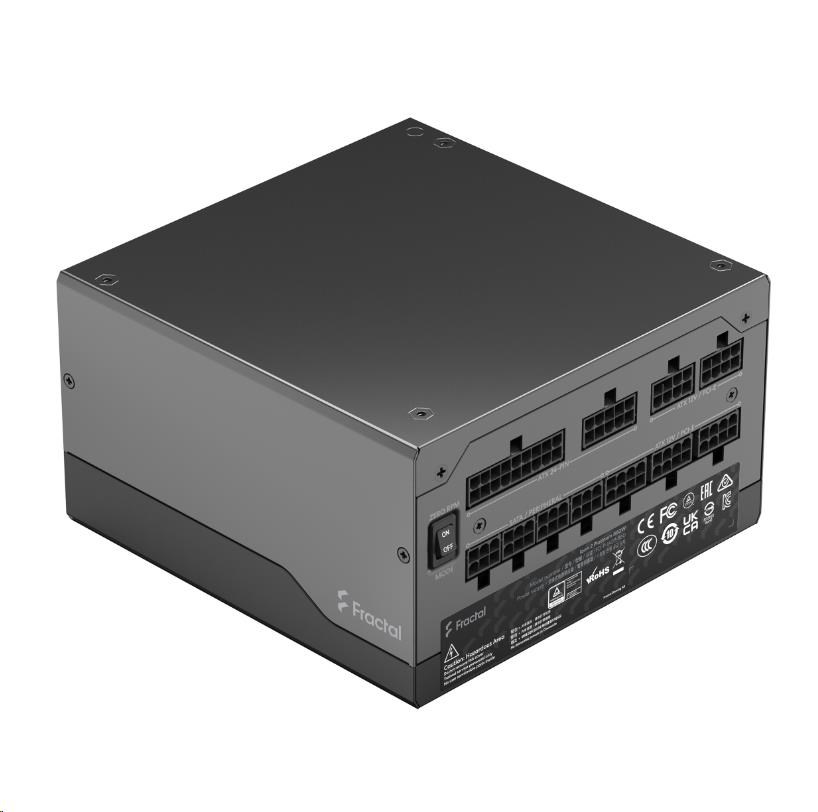

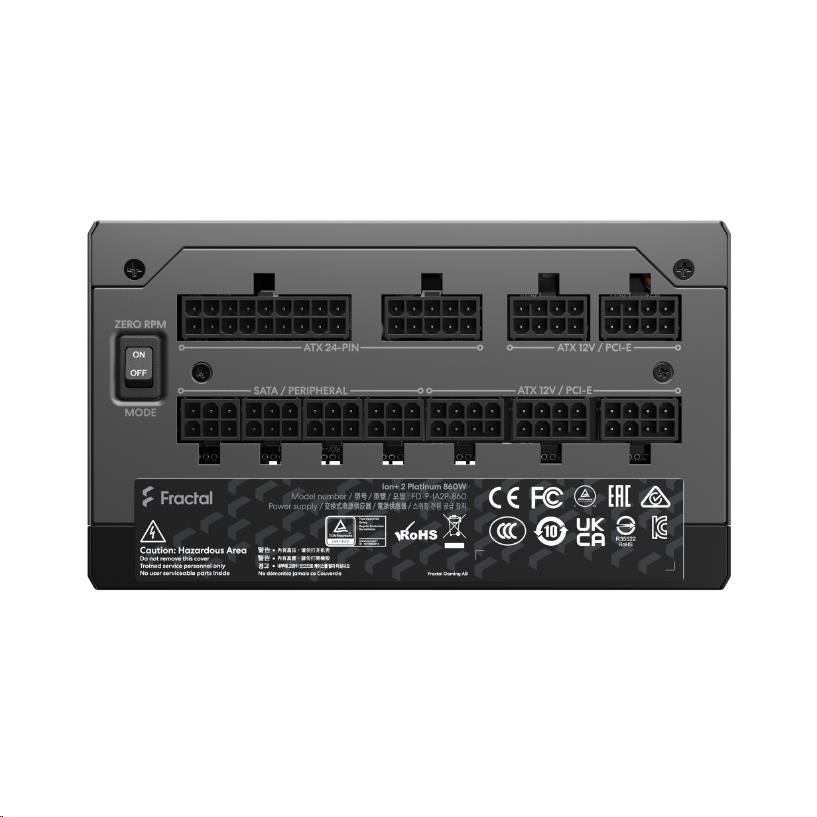

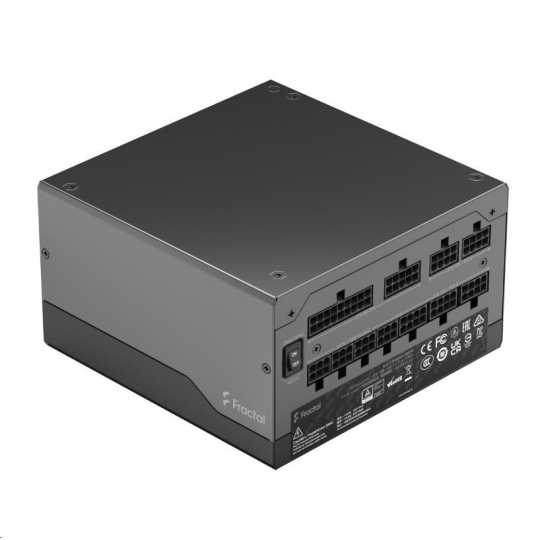

Connectors
ATX 24-pin 1
ATX12V 4+4 pin / EPS12V 8-pin 2
PCIe 6+2 pin 6
SATA 10
Peripheral 4

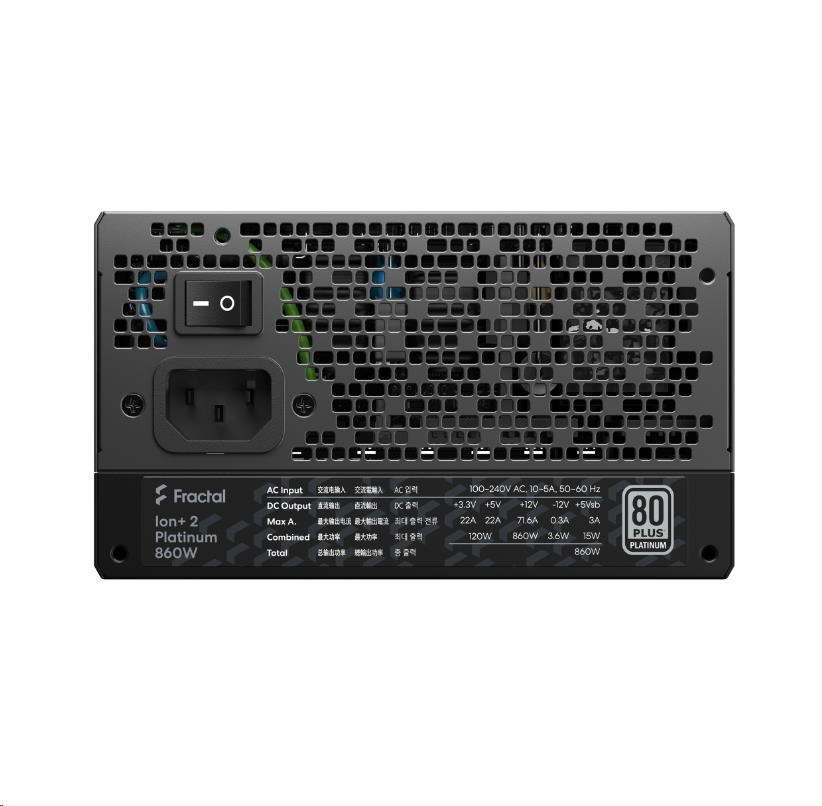

DC Output
3.3V 22A
5V 22A
3.3V and 5V combined 120W
12V 71.6A
-12V 0.3A
+5Vsb 3A
Total Power 860W
Cable Configuration (length in mm between connectors)
ATX 20+4 pin 600
ATX 12V 4+4 pin 700
EPS12V 8-pin 600
PCIe 6+2 pin 550+120
SATA 400+150+150+150 mm & 650+150mm
Peripheral 400+150+150+150 mm

.
ParametryPorovnání
*Výkon zdroje (ve W)
860
Konektory
SATA 15-pin
Konektory
PCIe 8-pin
Konektory pro základní desku
ATX 24-pin
Efektivita zdroje
80 Plus Platinum
Modulární kabeláž
Ano
Výkon zdroje (W)
860
