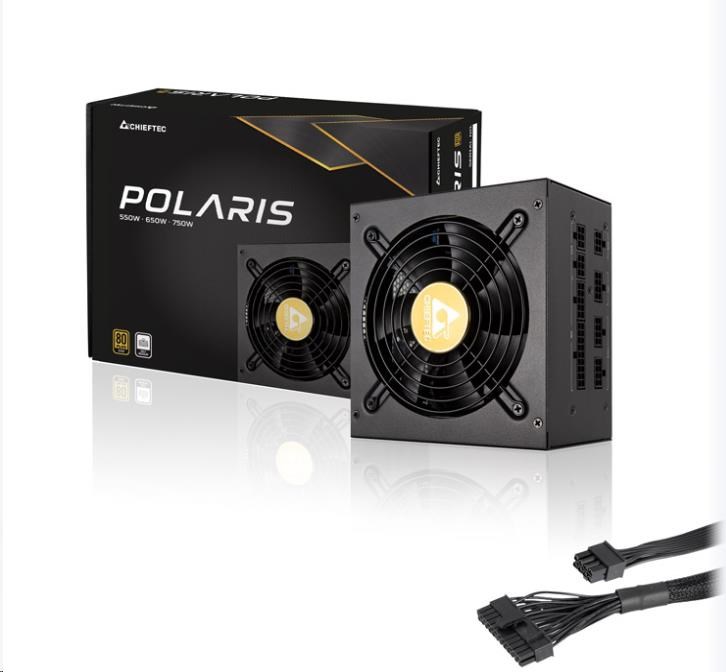

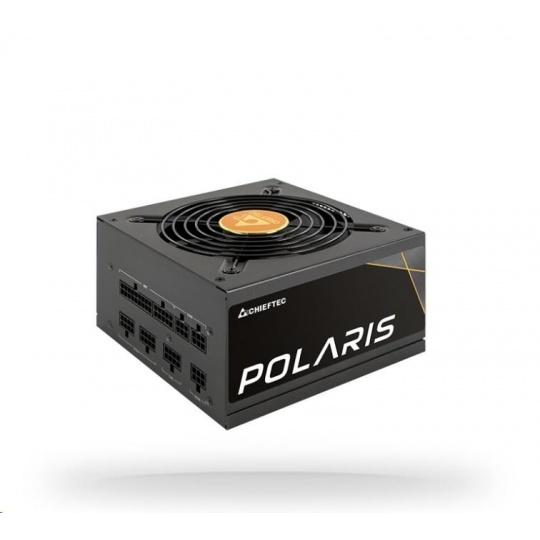

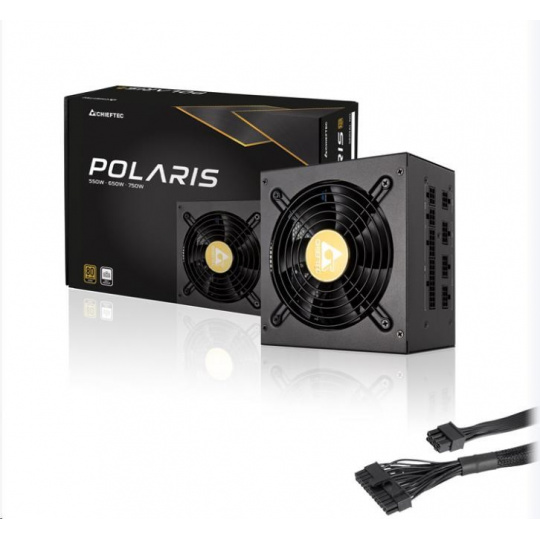

CHIEFTEC zdroj Polaris Series, PPS-750FC, 750W, ATX-12V V.2.4, PS2, 12cm fan, Active PFC, Modular, 80+ Gold
CHIEFTEC zdroj Polaris Series, PPS-750FC, 750W, ATX-12V V.2.4, PS2, 12cm fan, Active PFC, Modular, 80+ Gold
PPS-750FC
- 80 PLUS® Gold certified efficiency

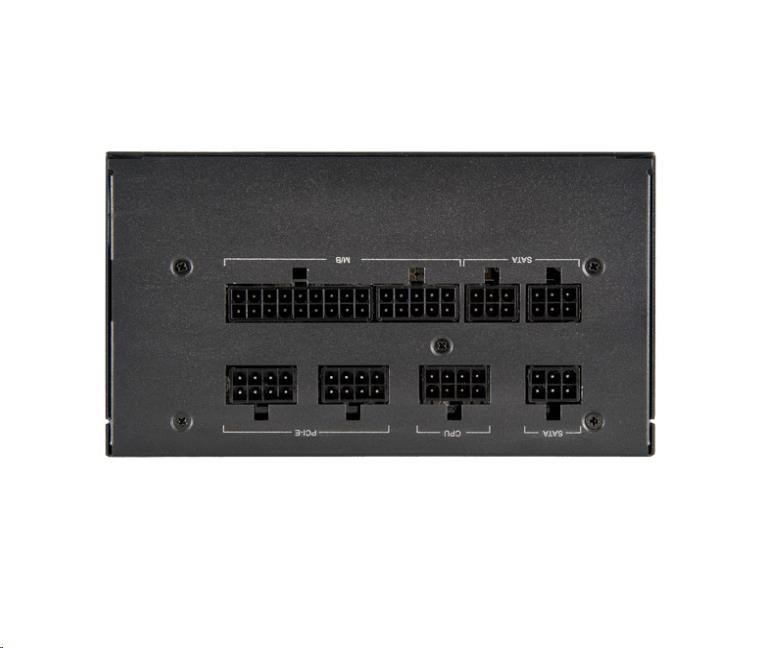

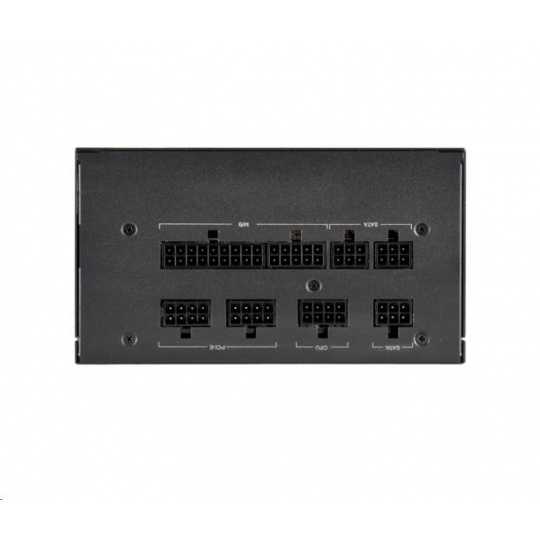

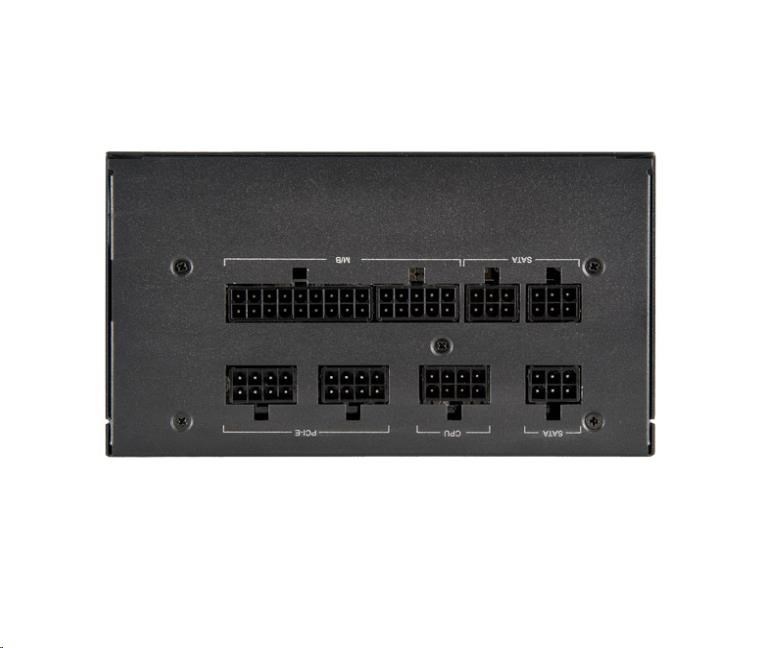

- Fully modular cable management
- High power density design for compact size
- LLC half-bridge converter with DC-to-DC technology
The Polaris Series brings CHIEFTEC’s trusted and proven experience with high quality, 80 PLUS® Gold certified, fully modular power supplies back to the forefront of modern technology. Polaris Series PSU’s feature state-of-the-art technical design including LLC half-bridge converter with DC-to-DC technology, as well as high power-density to allow higher efficiency and power output with a more compact size.
With the size of only 140mm in length and fully modular cable management, the Polaris Series is easy to install in any system for standard ATX PSU. Cable lengths of 650mm ensure that these power-supplies can be used even in large builds. Whether a small PSU housing for compact system is needed or longer cables for large systems, the Polaris Series can be trusted to do the job with top performance and efficiency.
TECHNICAL SPECIFICATIONS
| PERFORMANCE | |
| Model | Polaris 750W |
| Article no. | PPS-750FC |
| EAN code | 0753263076441 |
| Weight (without/with package) | 2.285 kg / 2.590 kg |
| AC Input | 100-240V / 10A |
| Frequency | 50-60Hz |
| +5V | 22A |
| +3,3V | 22A |
| +5V & +3,3V combined | 120W |
| +12V 1 | 62.5A / 750W |
| +12V 2 | - |
| +12V 1 & +12V 2 combined | - |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VsB | 3.0A / 15W |
| Maximum Power | 750W |
| CONNECTORS | |
| 20+4PIN ATX | 1 |
| 8 PIN EPS (4+4) | 2 |
| 8 PIN PCIe (6+2) | 4 |
| SATA | 8 |
| MOLEX | 3 |
| FLOPPY | 1 |
| CABLE LENGHT | |
| 20+4PIN ATX | 650 |
| 8 PIN EPS (4+4) | 650/150 |
| 8 PIN PCIe (6+2) | 2x 500/150 |
| SATA | 2x 450/150/150/150 |
| MOLEX | 450/150/150/150 |
| FLOPPY | Molex |
| FEATURES | |
| Specification | ATX 12V 2.4 |
| Form factor | PS II |
| Efficiency | 80 PLUS® Gold |
| Dimension (DxWxH) | 140mm x 150mm x 87mm |

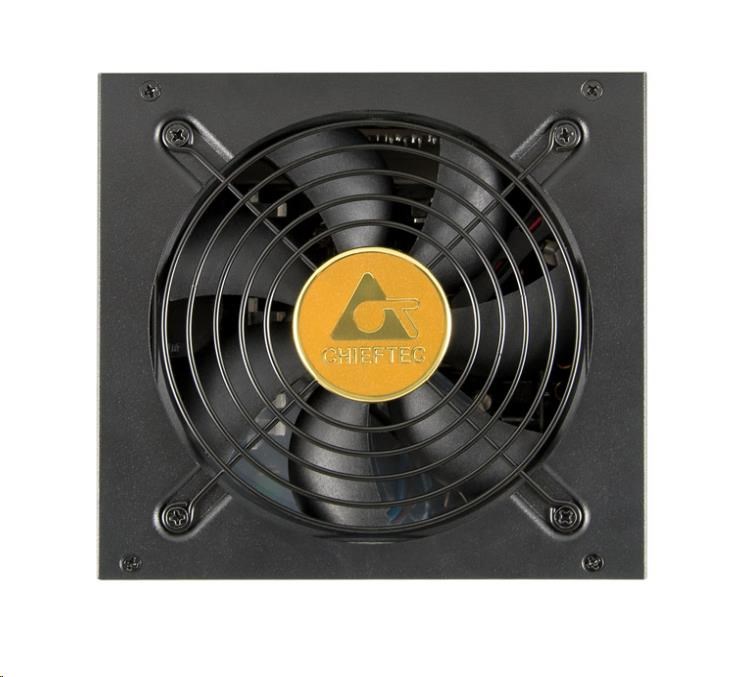

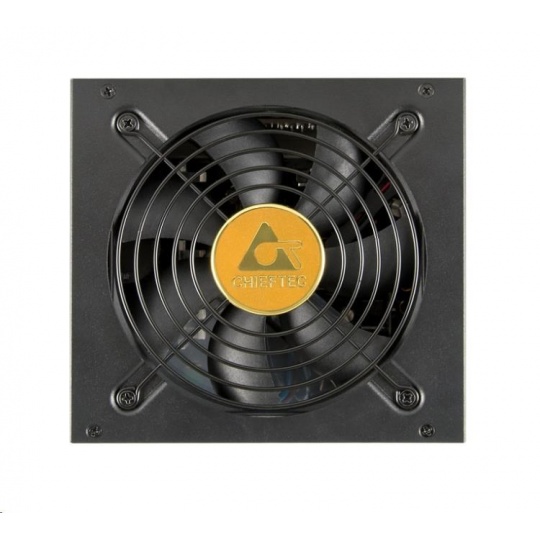

| Fan | 120mm silent fan |
| Security | AFC (Automatic Fanspeed Control) OCP (Overcurrent protection) OPP (Overload protection) OTP (Over Temperature protection) OVP (Overvoltage protection) SCP (Short-circuit protection) SIP (Surge & Inrush Protection) OCP (Overcurrent protection) UVP (Undervoltage protection) |
| Warranty | 24 Months |
.
