ASUS MB Sc LGA1200 PRIME H510M-A, Intel H510, 2xDDR4, 1xDP, 1xHDMI, 1xVGA, mATX

Pro procesory:Intel; Socket (patice):Socket 1200; Chipset:Intel H510, Intel; Počet paměťových slotů:2; Technologie paměti RAM:DDR4; Formát základní desky:micro ATX; Podpora RAID:Bez RAID podpory; PCI Express x16:1; PCI Express x1:2; USB 2:8; USB 3:4; USB C:0; SATA 3:4; PCI:0; M.2 slot:1; 3.5mm Jack; LAN:1Gbit/s; VGA:1; DVI:0; HDMI:1; DisplayPort:1.... více
Běžná cena: 2 222  (-2%)
1 807.44 Kč bez DPH
Skladem > 5 ks
2 187 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 431384
Kód dod.: 90MB17C0-M0EAY0
EAN: 4711081128465
Záruka: 36 Měsíc(ů)
Výrobce: Asus
Popis a parametry

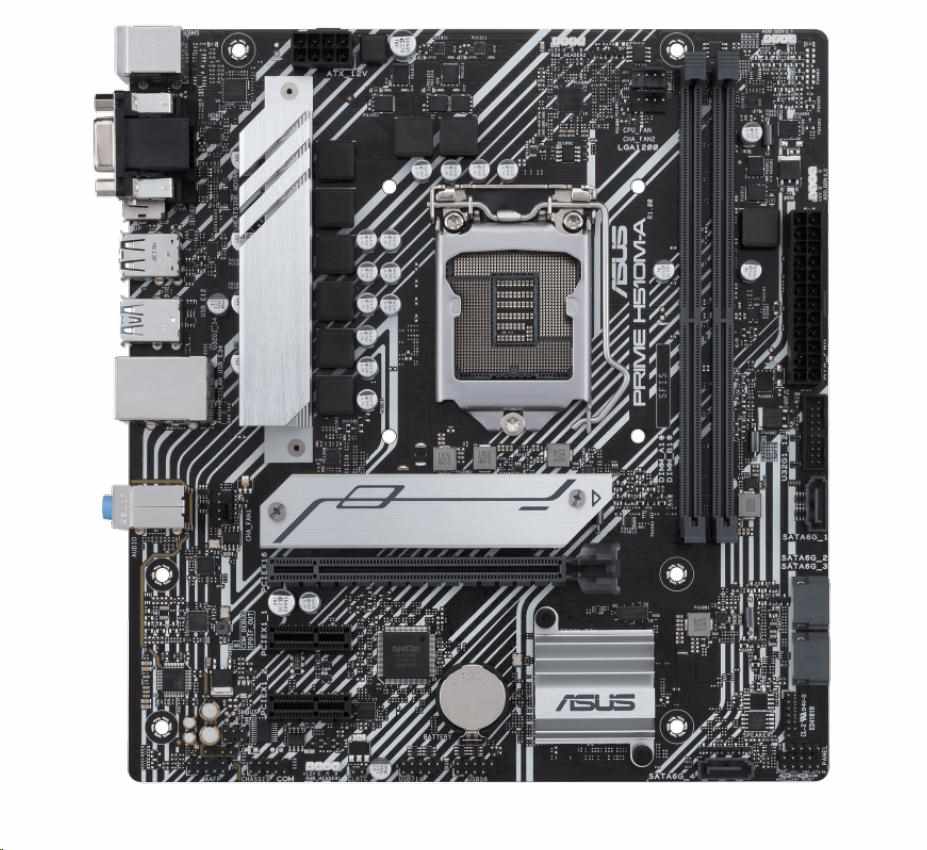

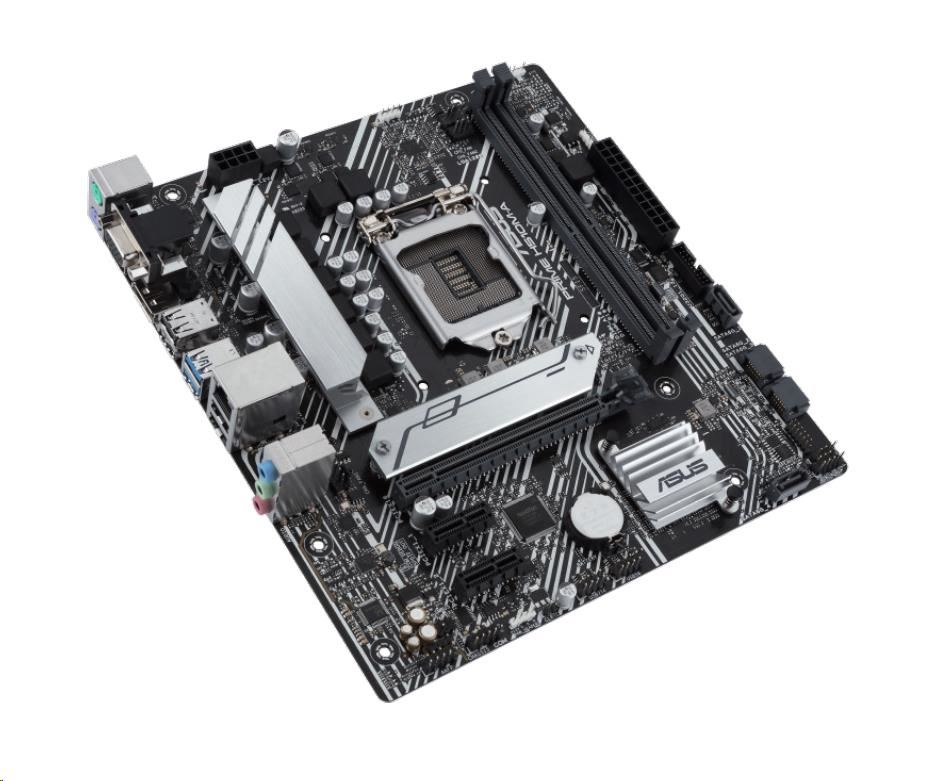

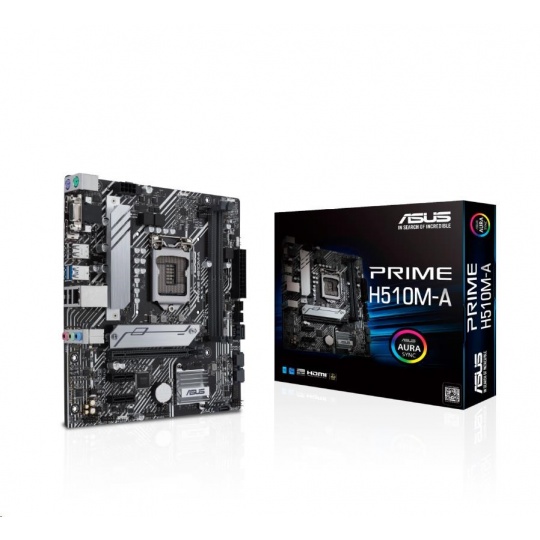

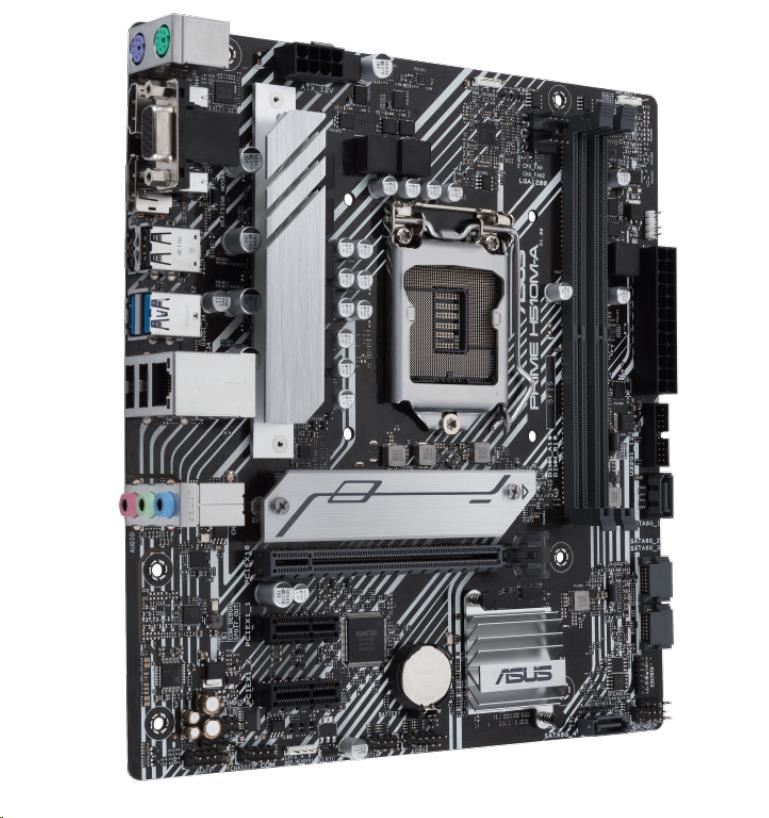

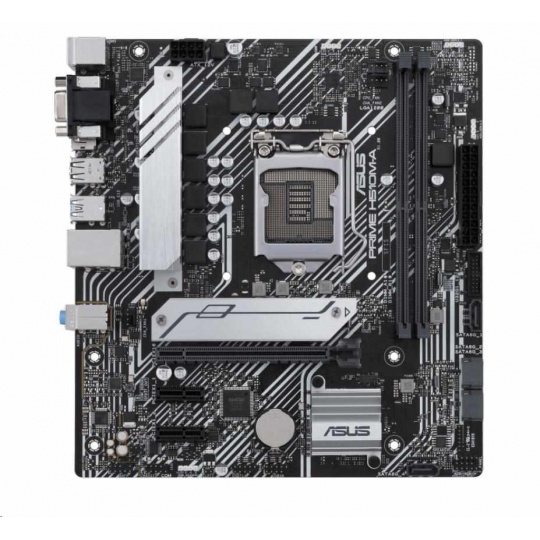

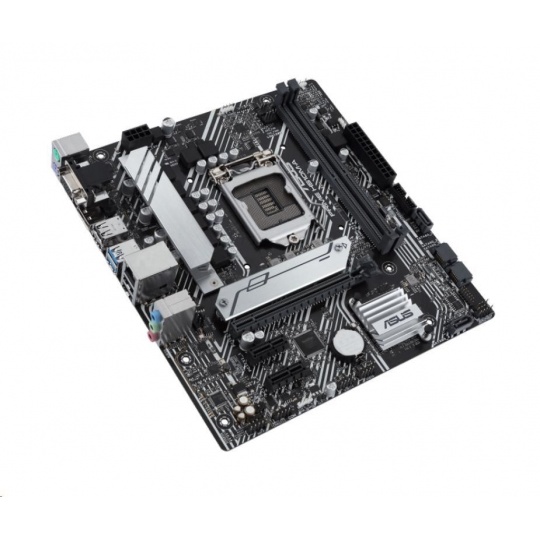

ASUS MB Sc LGA1200 PRIME H510M-A, Intel H510, 2xDDR4, 1xDP, 1xHDMI, 1xVGA, mATX

PRIME H510M-A

Intel® H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, and AURA Addressable Gen 2 headers

  • Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors
  • Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink and Fan Xpert 2+
  • Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet and USB 3.2 Gen 1
  • Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware

CPU

Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® H510 Chipset

Memory

Memory Channels:2DDR4 (Dual Channel)
Max Memory Size:64GB
DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics

1 x DisplayPort 1.4**
1 x D-Sub
1 x HDMI™ 2.0**
* Graphics specifications may vary between CPU types.
** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
*** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

Expansion Slots

Intel® 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel® 11th Gen processors support PCIe 4.0 x16
- Intel® 10th Gen processors support PCIe 3.0 x16
Intel® H510 Chipset
2 x PCIe 3.0 x1 slots

Storage

Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H510 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used.

Ethernet

1 x Intel® I219-V 1Gb Ethernet

USB

Rear USB:Total 6 ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

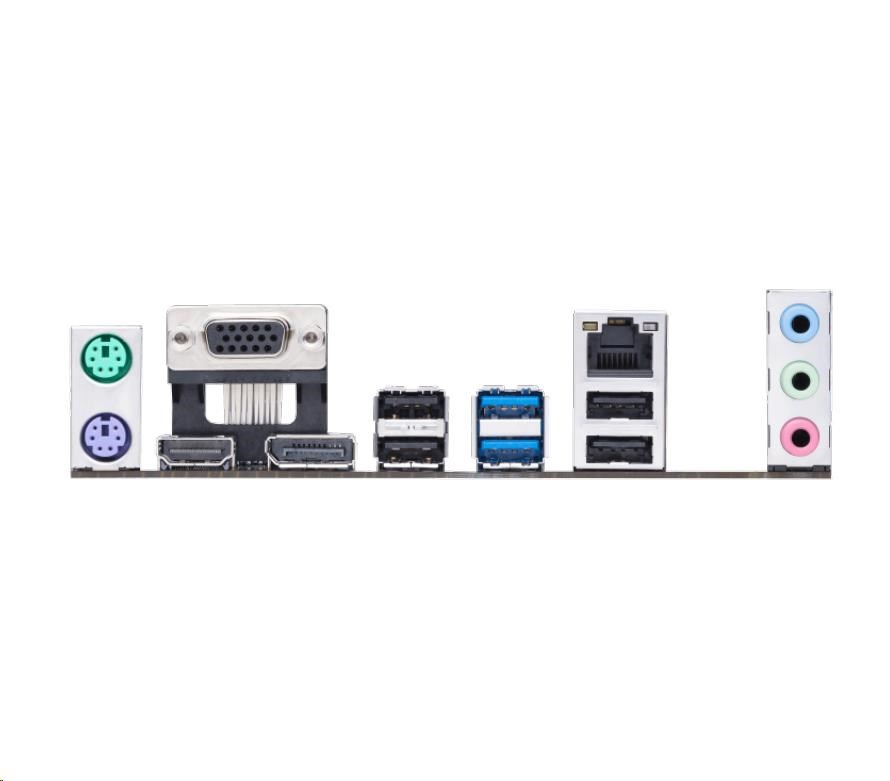

Back Panel I/O Ports

2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x D-Sub port
1 x HDMI™ port
1 x Intel® I219-V 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers

Software Features

ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
AI Suite 3
- Performance and Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x User manual

Operating System

Windows 10 64bit

Form Factor

microATX
22.6cm x 21.1cm

.
ParametryPorovnání
Technologie paměti RAM
DDR4
Socket (patice)
Socket 1200
Chipset
Intel
Chipset
Intel H510
PCI Express x16
1
Podpora RAID
Bez RAID podpory
COM port
Ano
LPT port
Ne
Formát základní desky
micro ATX
3.5mm Jack
Ano
Bezdrátové připojení
bez
Pro procesory
Intel
Počet paměťových slotů
2
DisplayPort
1
TPM
Ano
USB 2
8
USB 3
4
PCI
0
M.2 slot
1
SATA 3
4
VGA
1
DVI
0
HDMI
1
Led Header
Ano
PCI Express x1
2
USB C
0
LAN
1Gbit/s
