MSI MB Sc AM4 B450M-A PRO MAX, AMD B450, 2xDDR4, VGA, mATX

Novinka
Přidat do oblíbenýchMSI MB Sc AM4 B450M-A PRO MAX, AMD B450, 2xDDR4, VGA, mATX
Socket (patice):Socket AM4; Formát:micro ATX; Integrovaná grafická karta:Ano (CPU); Chipset:AMD; Technologie paměti RAM:DDR4; PCI express 16x:1; Integrovaná LAN karta:1; Rozhraní:HDMI, VGA, USB 2.0, USB 3.2, 3.5mm Jack, DVI.

Kód produktu2647884
Part numberB450M-A PRO MAX
EAN produktu4719072667696

Záruka:36 Měsíc(ů)
Výrobce:MSI
Skladová dostupnost:Na dotaz
Běžná cena
1834 Kč
Vaše cena bez DPH
1322.31 Kč
Vaše cena včetně DPH
1600 Kč
Počet
ks
Dotaz na prodejce >






Přidat produkt k porovnání >Přidat produkt k oblíbeným >
Popis
Parametry
Hlídací pes

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1



  • Supports 1st, 2nd and 3rd Gen AMD® Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD® Ryzen™with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Desktop Processors for Socket AM4

  • Supports DDR4 Memory, up to 4133 (OC) MHz

  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.

  • Audio Boost: Reward your ears with studio grade sound quality.

  • X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.

  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.




TECHNICAL SPECIFICATIONS

































PROCESSOR Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
CHIPSET AMD® B450 Chipset
MEMORY

  • 2 x DDR4 memory slots, support up to 64GB *ComboPI 1.0.0.3-based and above BIOS are required.

  • Support DDR4 1866/ 2133/ 2400/ 2667Mhz(by JEDEC)
    For AMD Ryzen Gen3 (R5/R7/R9)
    2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
    For AMD Other CPU
    2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)

  • Dual channel memory architecture

  • Supports ECC UDIMM memory (non-ECC mode)

  • Support non-ECC UDIMM memory


SLOTS

  • 1 x PCIe 3.0 x16 slot
    Supports x16 speed
    1st, 2nd and 3rd Gen AMD Ryzen™
    Supports x8 speed
    Ryzen™ with Radeon™ Vega Graphics
    2nd Gen AMD Ryzen™ with Radeon™ Graphics
    A-series
    Athlon™ X4
    Supports x4 speed
    AMD® Athlon™ with Radeon™ Vega Graphics

  • PCIe 2.0 x1 slot


ONBOARD GRAPHICS

  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

  • 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz


STORAGE

AMD® B450 Chipset



  • 4x SATA 6Gb/s ports
    Supports RAID 0, RAID1 and RAID 10

  • 1x M.2 slot (Key M)
    Supports PCIe 3.0 x4 and SATA 6Gb/s
    1st, 2nd and 3rd Gen AMD Ryzen™
    Ryzen™ with Radeon™ Vega Graphics
    2nd Gen AMD Ryzen™ with Radeon™ Graphics
    Supports PCIe 3.0 x2 and SATA 6Gb/s
    AMD® Athlon™ with Radeon™ Vega Graphics
    A-series
    Athlon™ X4
    Supports 2242/2280/22110 storage devices


USB

AMD® B450 Chipset



  • 6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)

  • 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)


AUDIO

Realtek® ALC892 Codec



  • 7.1-Channel High Definition Audio


LAN

  • 1 x Realtek® 8111H Gigabit LAN controller


INTERNAL CONNECTORS

  • 1x 24-pin ATX main power connector

  • 1x 4-pin ATX 12V power connector

  • 4x SATA 6Gb/s connectors

  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

  • 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)

  • 1x 4-pin CPU fan connector

  • 1x 4-pin system fan connector

  • 1x Front panel audio connector

  • 2x Front panel connectors

  • 1x TPM module connector

  • 1x Chassis Intrusion connector

  • 1x Serial port connector

  • 1x Clear CMOS jumper

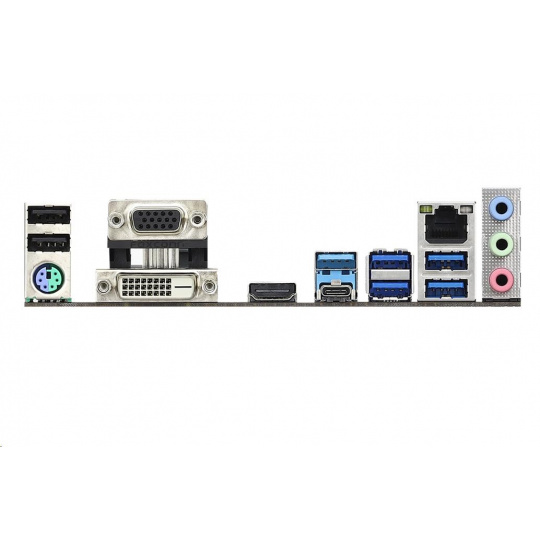

BACK PANEL PORTS

  • Mouse

  • DVI-D Port

  • USB 3.2 Gen1

  • LAN Port

  • Keyboard

  • HDMI Port

  • USB 2.0 Ports

  • HD Audio Connectors


DIMENSIONS

  • 9.3 in. x 7.9 in. (23.6 cm x 20.0 cm)

  • m-ATX Form Factor


MOUNTING

  • 6 mounting holes


OPERATING SYSTEM

  • Support for Windows® 10 64-bit

  • Support for Windows® 7 64-bit
    * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.



.
Technologie paměti RAM: DDR4
Socket (patice): Socket AM4
Integrovaná grafická karta: Ano (CPU)
Chipset: AMD
PCI express 16x: 1
Integrovaná LAN karta: 1
Rozhraní: DVI
Formát: micro ATX
