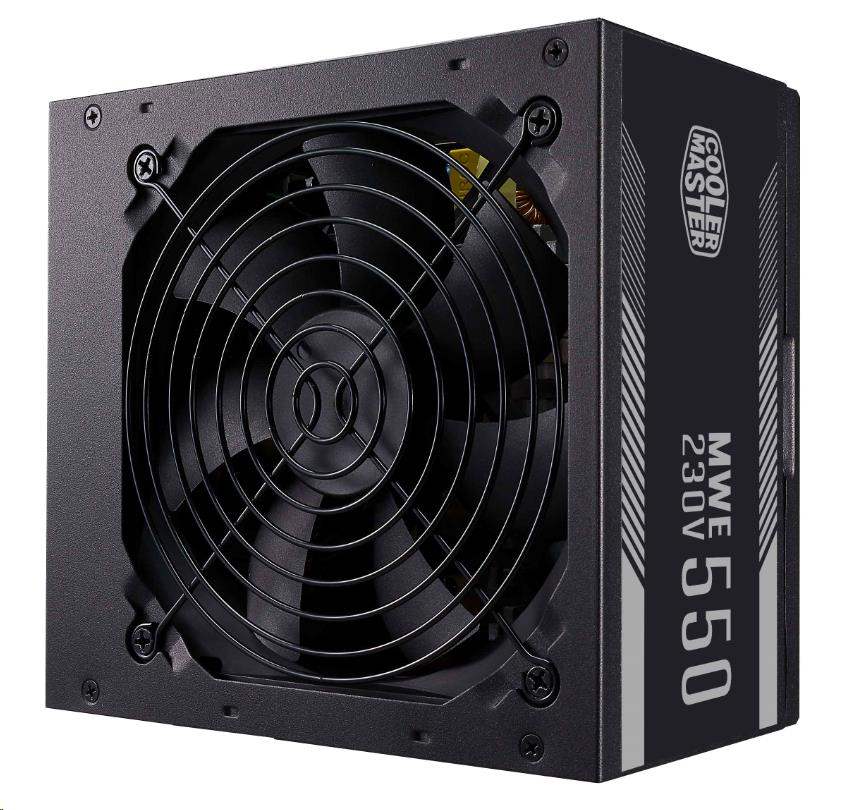

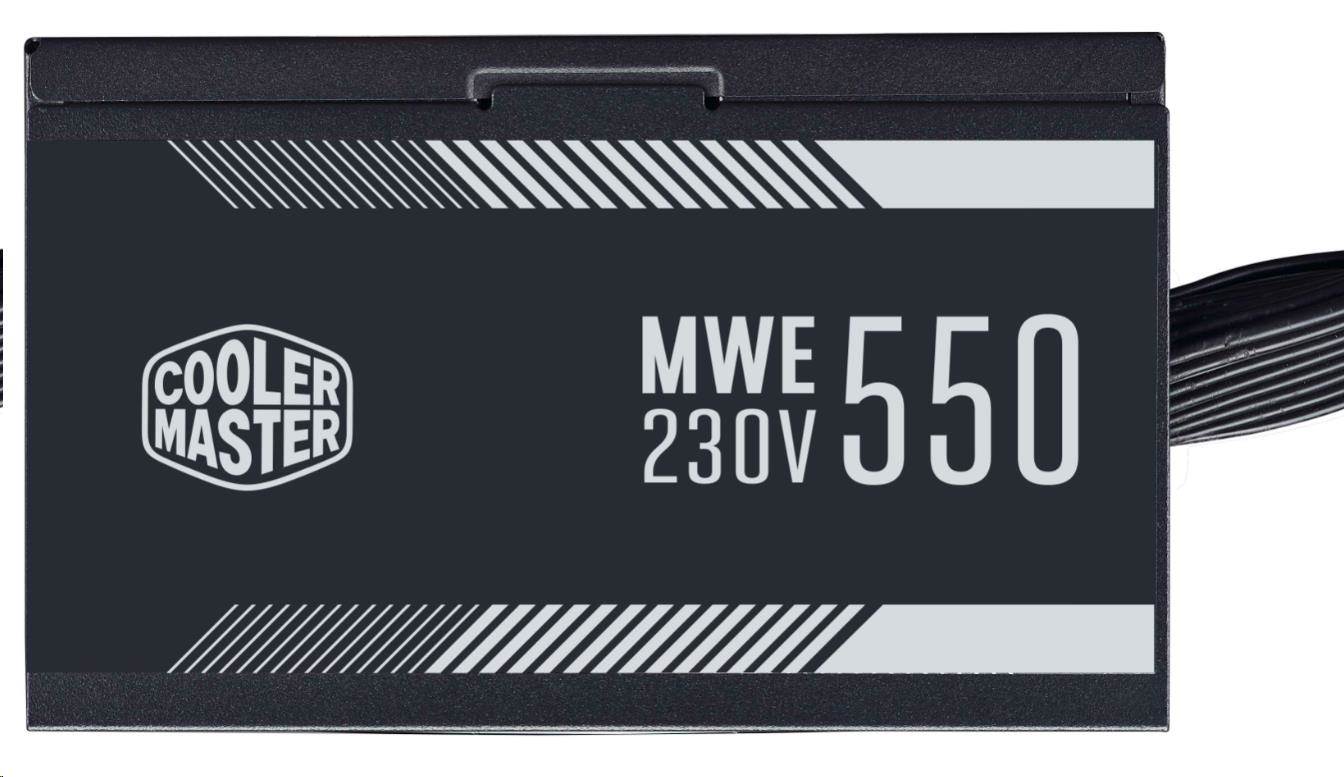

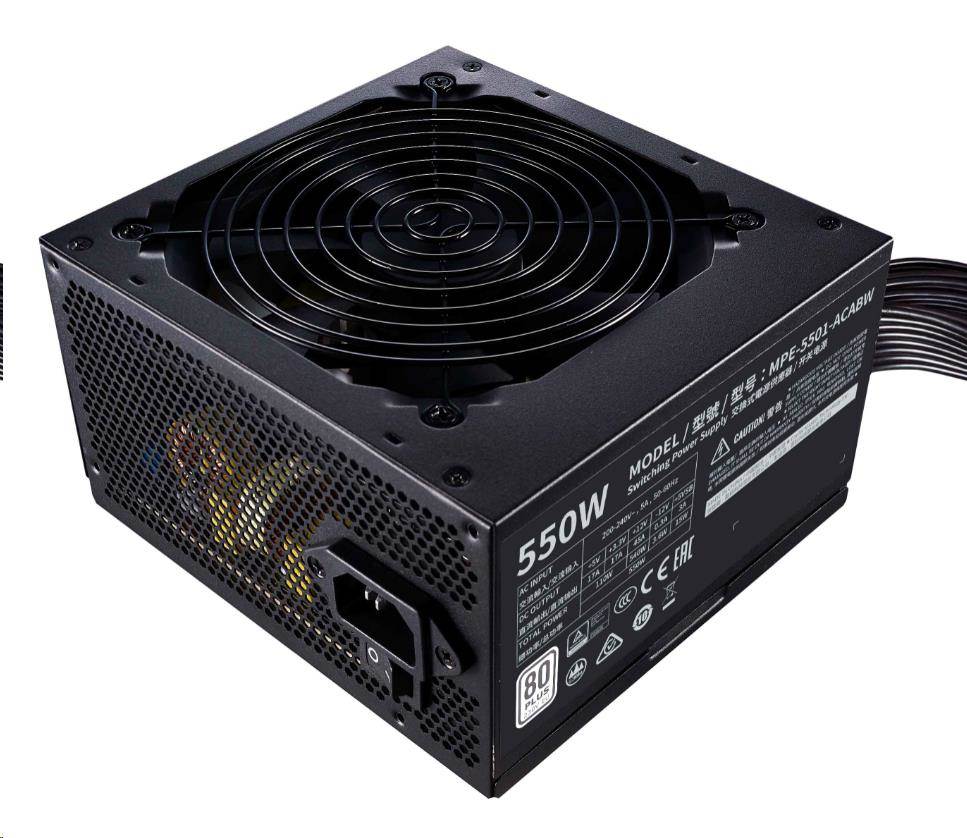

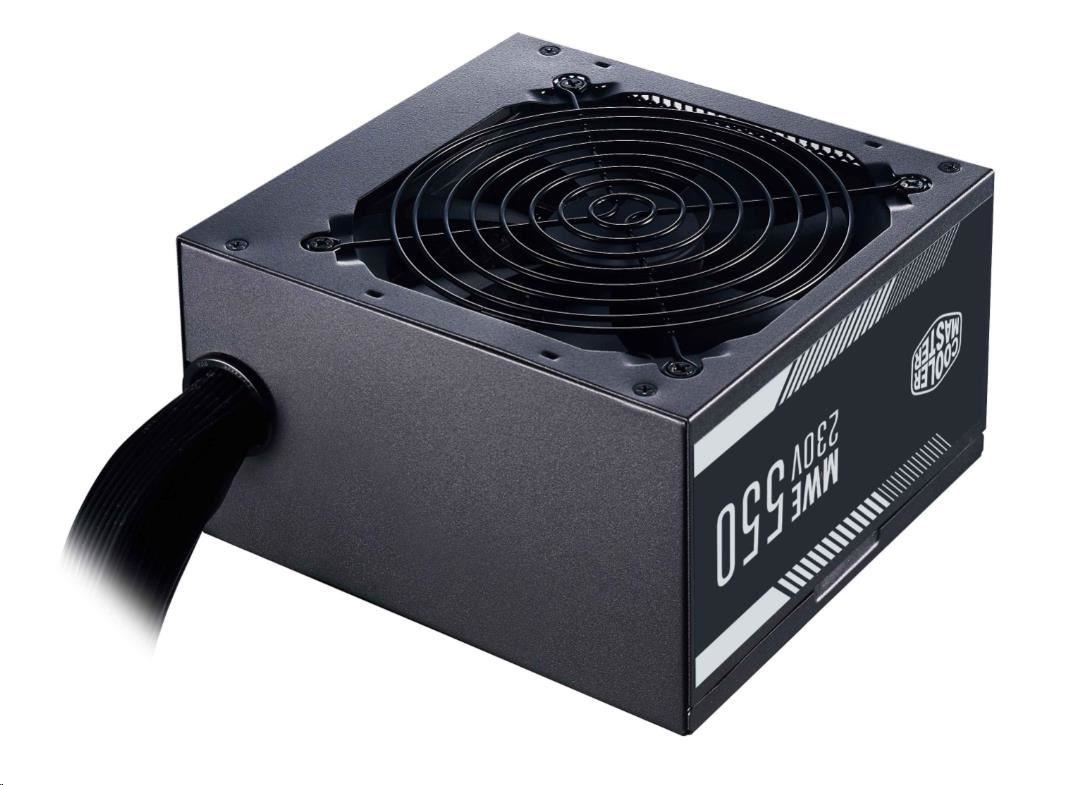

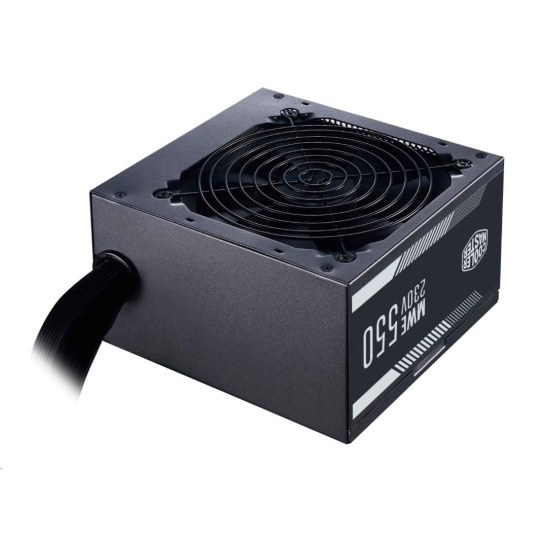

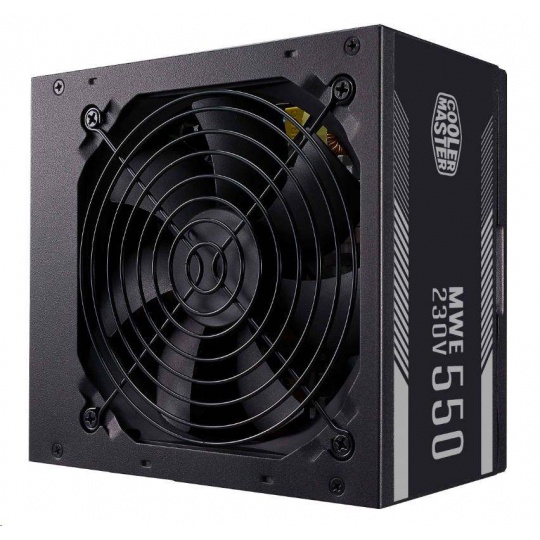

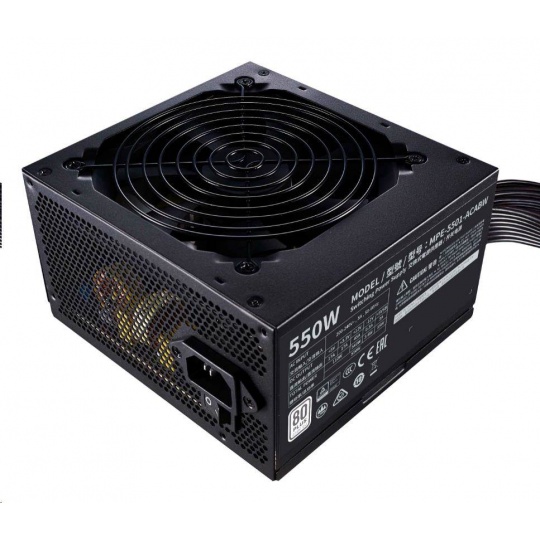

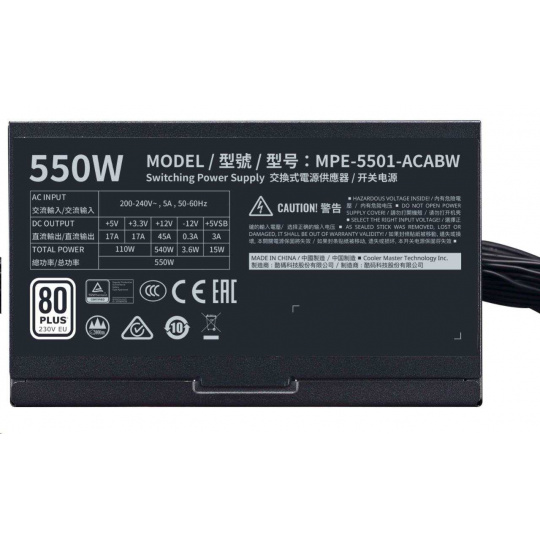

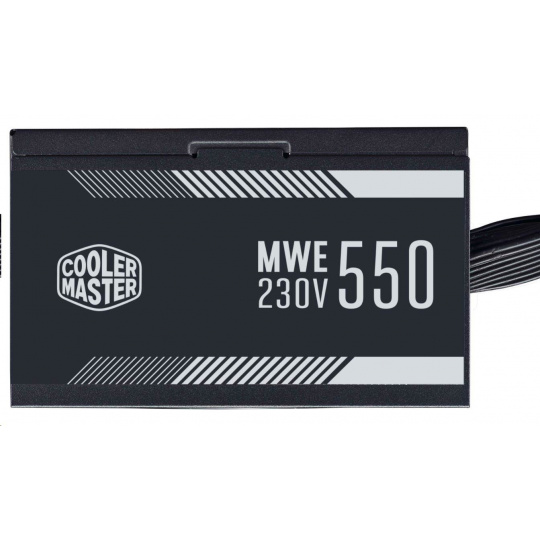

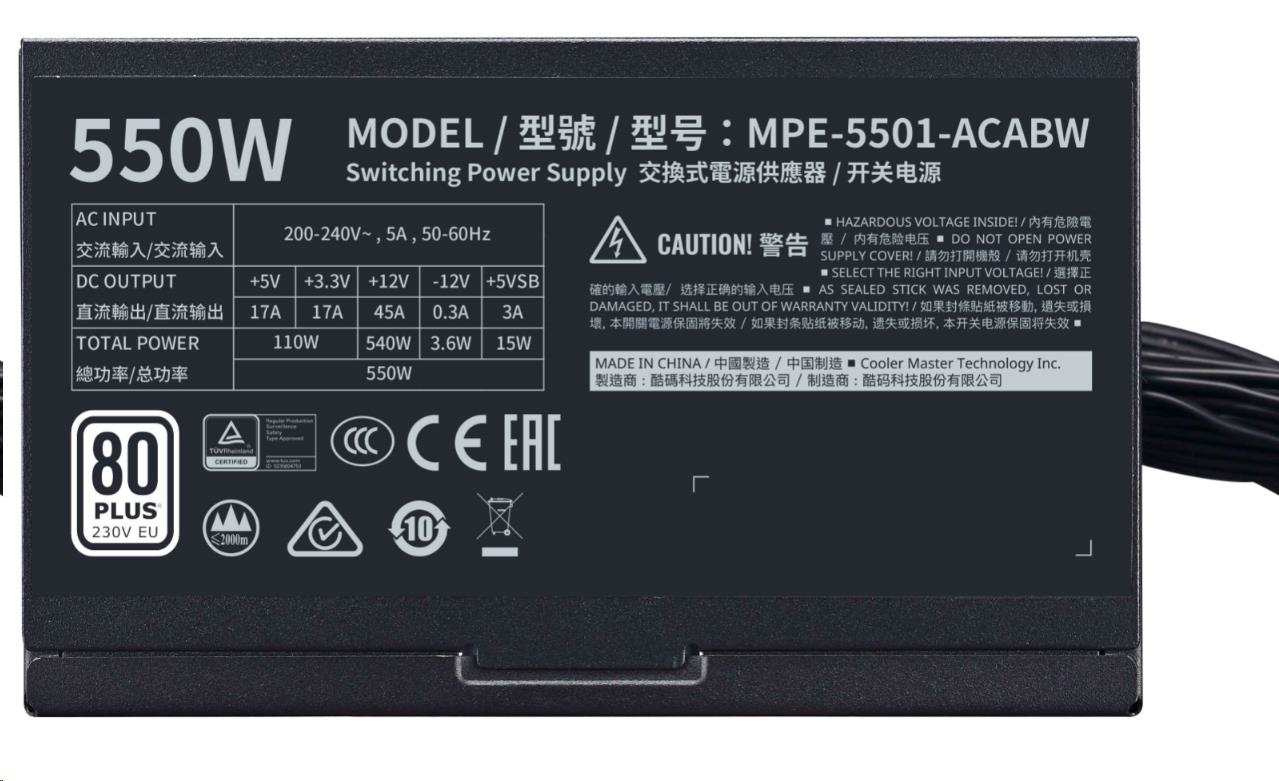

Cooler Master zdroj MWE White 550W V2, 120mm, 80+
Popis a parametry
Cooler Master zdroj MWE White 550W V2, 120mm, 80+
MWE 550 WHITE 230V - V2
80 PLUS STANDARD 230V EU CERTIFIED POWER SUPPLY
- 80 PLUS Standard 230V EU Certified
- 120mm HDB Fan
- DC-to-DC Technology
- Single +12V Rail
- Flat Black Cables
TECHNICAL SPECIFICATIONS
| ATX Version | ATX 12V V2.52 |
| PFC | Active PFC |
| Input Voltage | 200-240Vac |
| Input Current | 5A |
| Input frequency | 50-60 Hz |
| Dimensions (L x W x H) | 140 x 150 x 86 mm |
| Fan Size | 120 mm |
| Fan Bearing | HDB |
| Fan Speed | 1500 RPM |
| Noise Level @20% | 13.8 dBA |
| Noise Level @50% | 18.4 dBA |
| Noise Level @100% | 31.2 dBA |
| Efficiency | 85% Typically |
| 80 Plus Rating | 80 PLUS Standard 230V EU |
| ERP 2014 Lot 3 | Yes |
| Operating Temperature | 40°C |
| Power Good Signal | 100-500 ms |
| Hold Up Time | >14ms at 100% Full Load@230Vac |
| MTBF | >100,000 Hours |
| Protections | OVP, OPP, SCP, UVP, OTP |
| Regulatory | CCC, CE, TUV-RH, EAC, RCM, cTUVus, FCC, BSMI, KC, CB |
| ATX 24-pin Connectors | 1 |
| EPS 4+4 pin Connectors | 1 |
| SATA Connectors | 6 |
| Peripheral 4-pin Connectors | 3 |
| PCI-E 6+2 pin Connectors | 2 |
| 80 PLUS | Standard |
| Modular | Non Modular |
| Wattage | 500 to 750 W |
| Series | MWE White Series |
.
ParametryPorovnání
Formát zdroje
ATX
Konektory
8pin CPU 1x
Konektory pro základní desku
ATX 24-pin
Efektivita zdroje
80 Plus
Modulární kabeláž
Ne
Výkon zdroje (W)
550
Cooler Master zdroj MWE White 550W V2, 120mm, 80+
